Instructions:
This Multi-parameter patient monitor is certified with CE0123, ISO13485, and ROHS. The PM6100 is designed to monitor vital physiological signals including Heart Rate (HR), Non-invasive Blood Pressure (NIBP), SpO2, Pulse Rate (PR), Body Temperature (TEMP), and Respiration Rate (RESP). It accurately captures signals and has been verified through extensive clinical experiments.
Customization: Minimum quantity for customization is 1000 units.
Target Population: Adults, Elderly, and Children
Scenarios: Family care, Ambulance, and Outdoor first aid

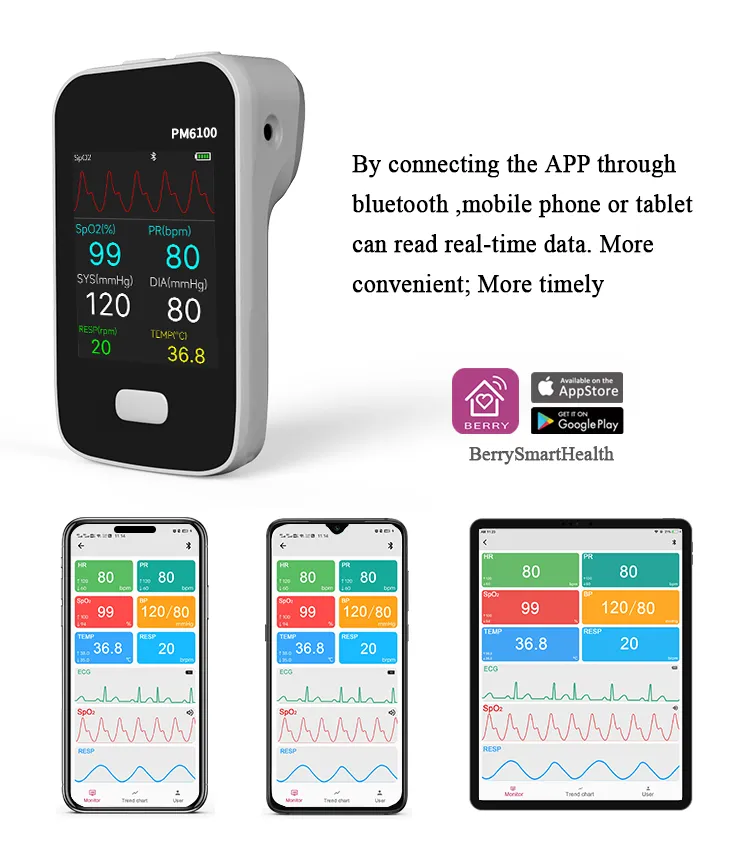

✓ Connect via Bluetooth to mobile phones or tablets for real-time data monitoring.

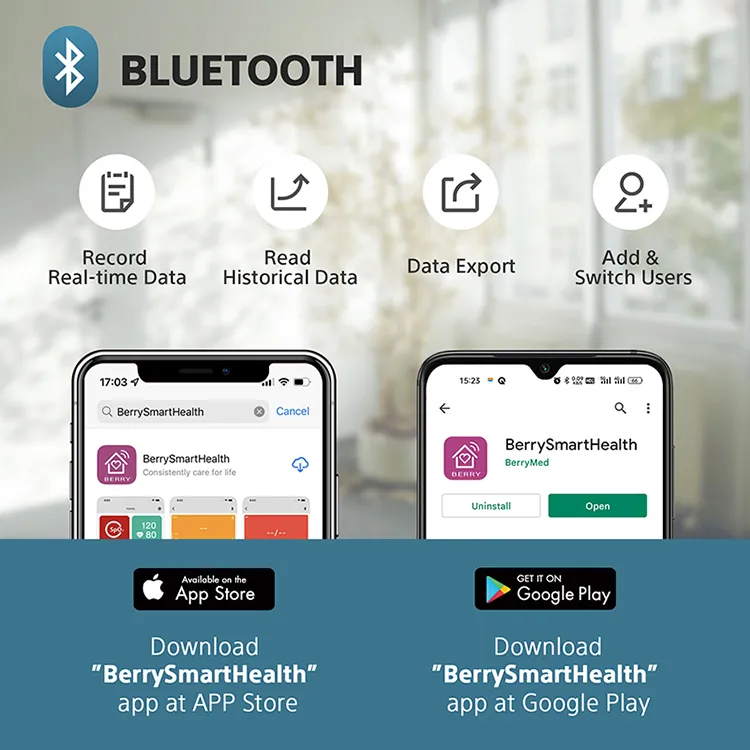

✓ Download the "Berry Smart Health" app at the App Store and Google Play.

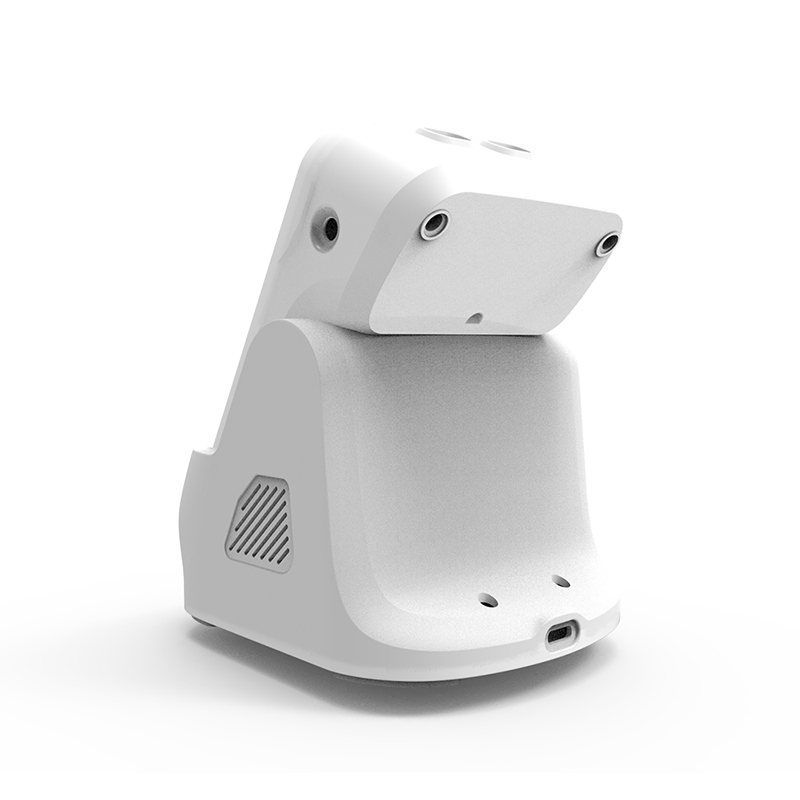

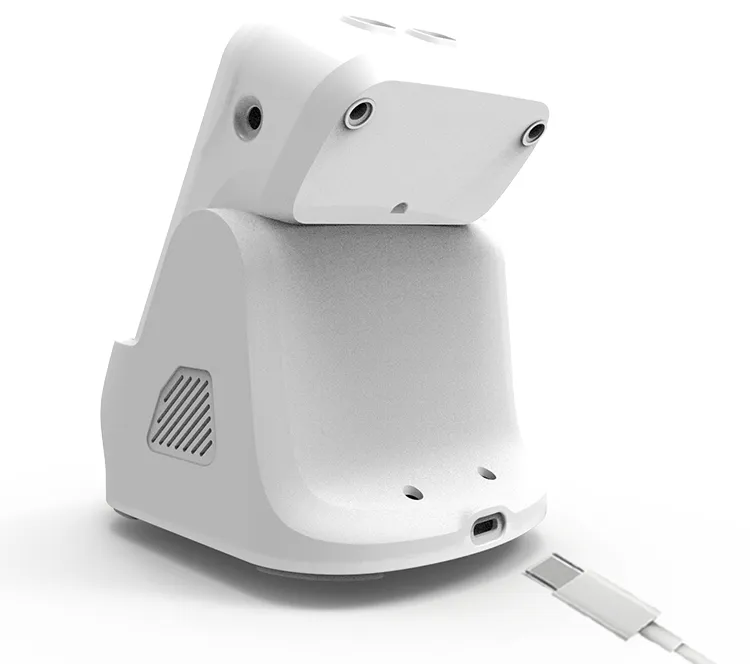

Wireless Charging Base

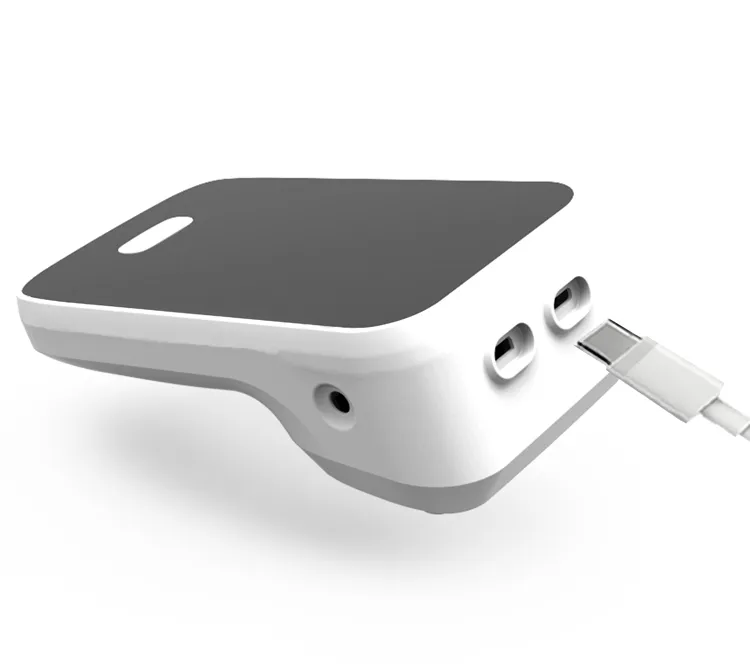

Machine Charging
The device supports a Type-C interface and can be used while charging. It features a built-in 3.7V, 1800mAh lithium battery providing 10 hours of continuous operation.

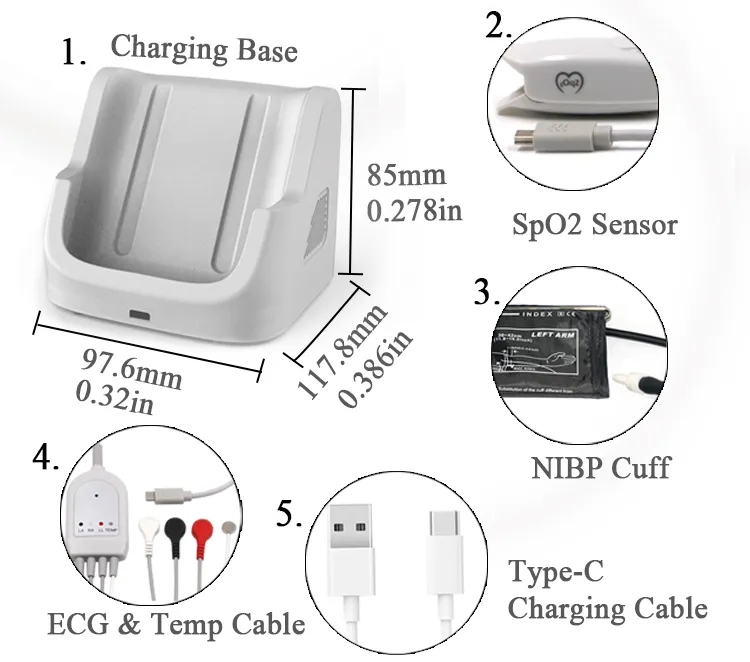

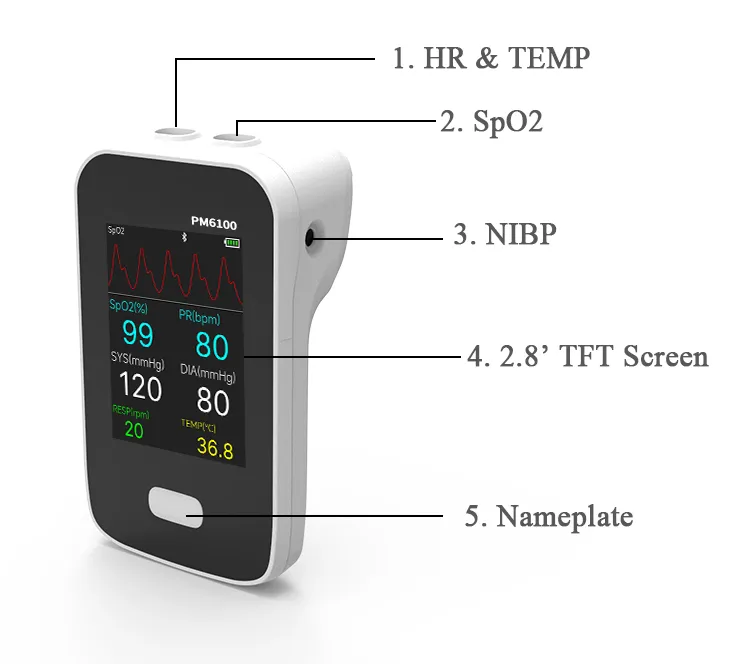

| No. | Name | Purpose |
|---|---|---|
| 1 | HR & TEMP | Connecting lead cable and charging |
| 2 | SpO2 | Connecting SpO2 sensor |
| 3 | NIBP | Connecting NIBP cuff |

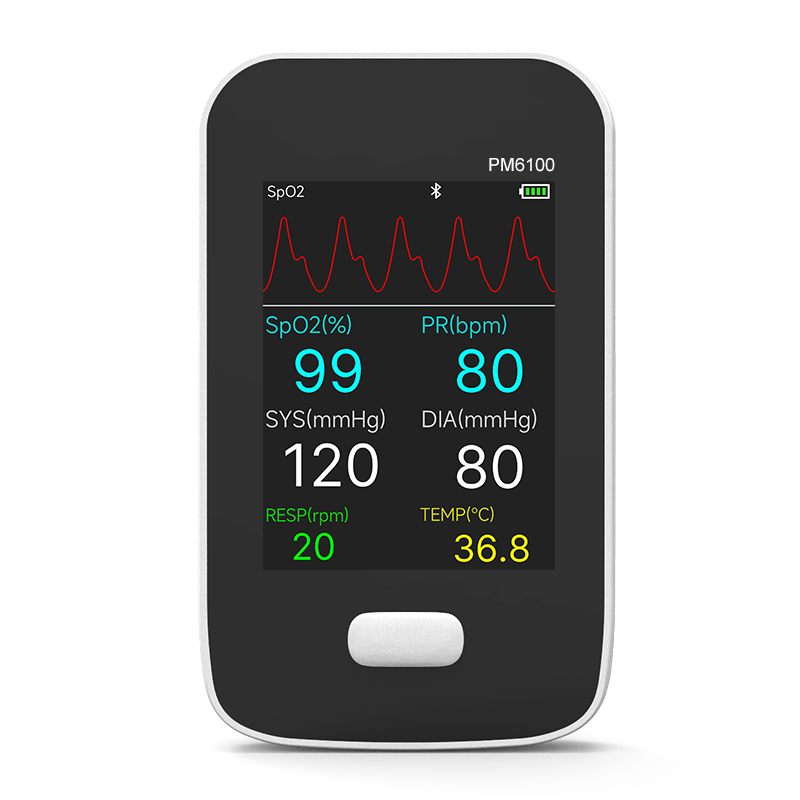

| 4 | TFT screen | Real-time monitoring results and waveform display |
| 5 | Button | Power on/off and function switching |

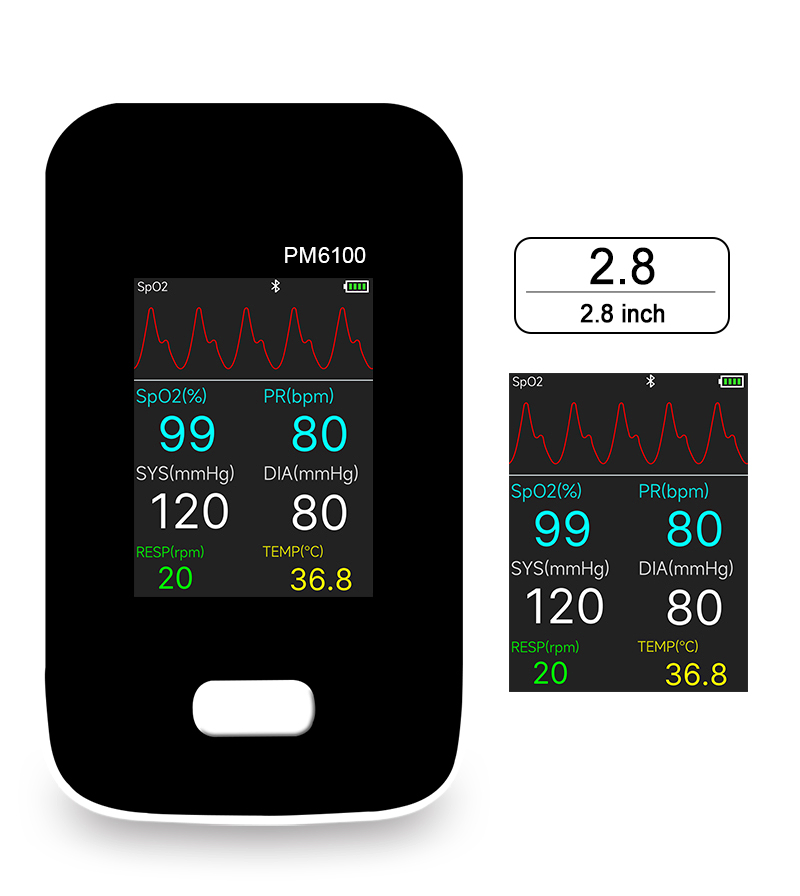

| Display | 2.8 inches colorized TFT-LCD screen |
| HR Range | 25~250bpm (Accuracy: ±2bpm or 2%) |
| SpO2 Range | 35~100% (Accuracy: ±2% for 80-100%) |
| NIBP Range | Systolic: 60~230mmHg / Diastolic: 40~130mmHg |
| TEMP Range | 25~45ºC (Accuracy: ±0.2ºC) |
| Weight | 256±10g (Device only) |
