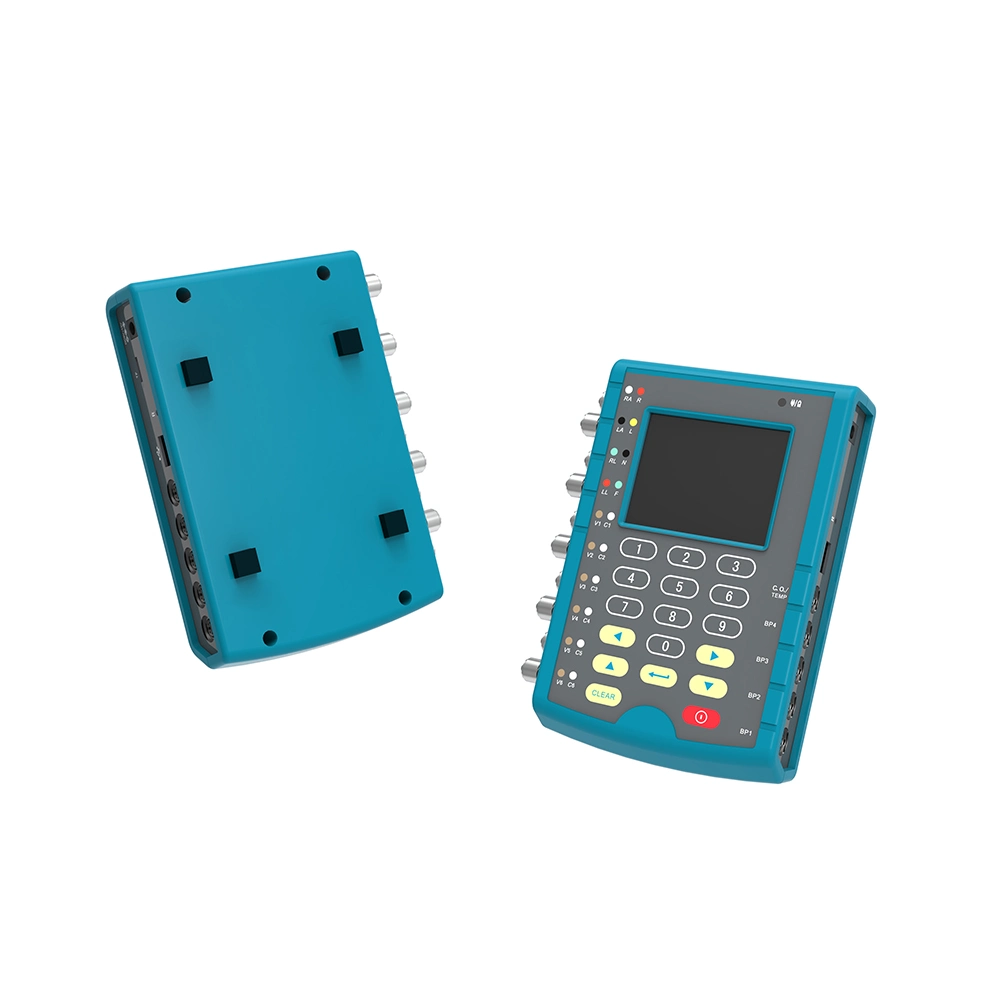

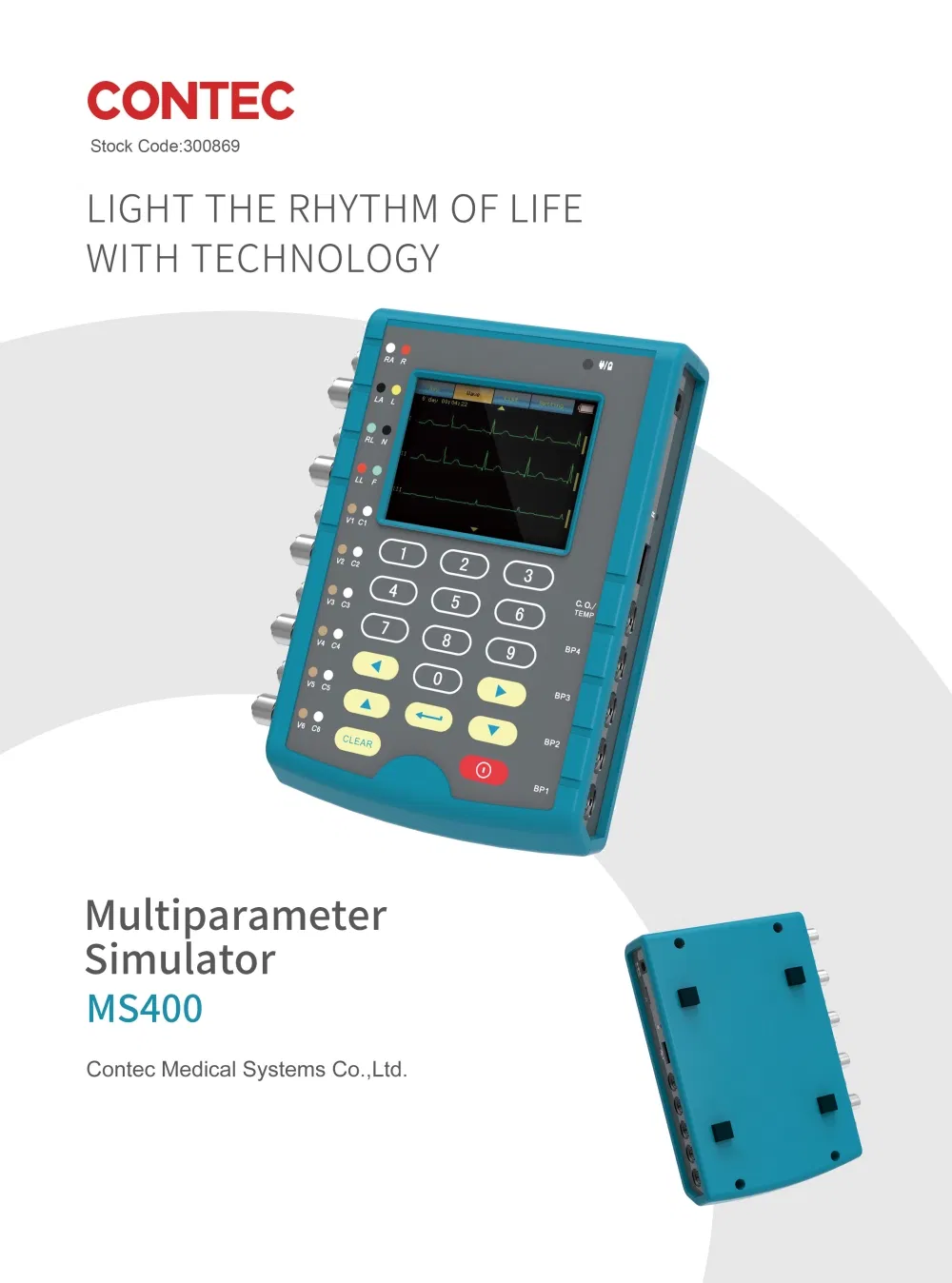

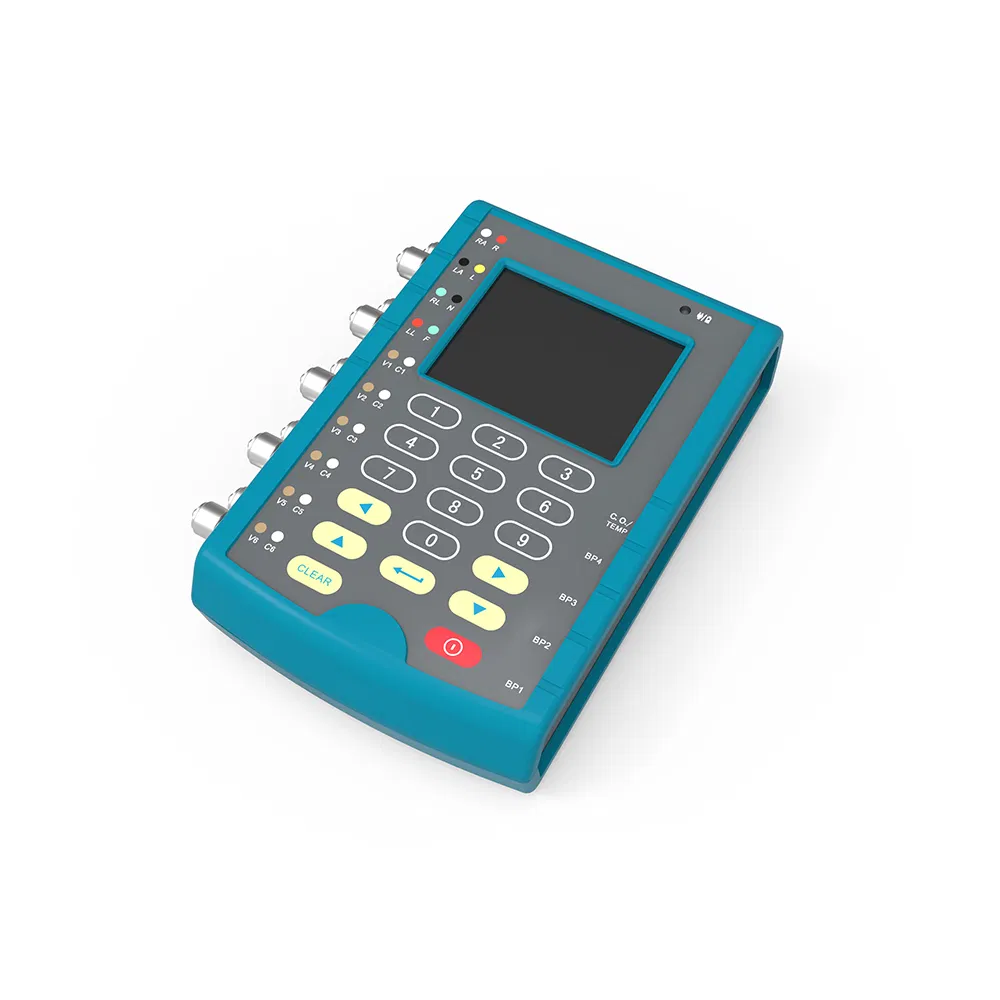

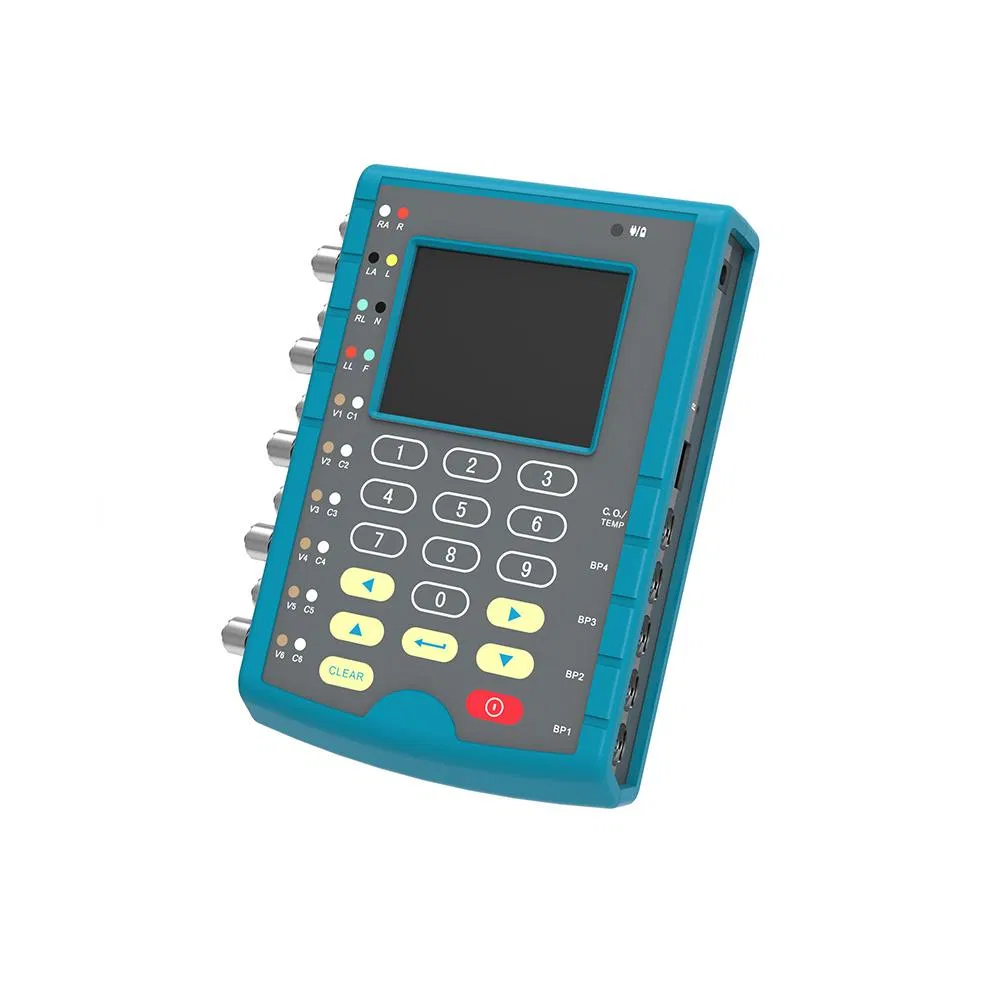

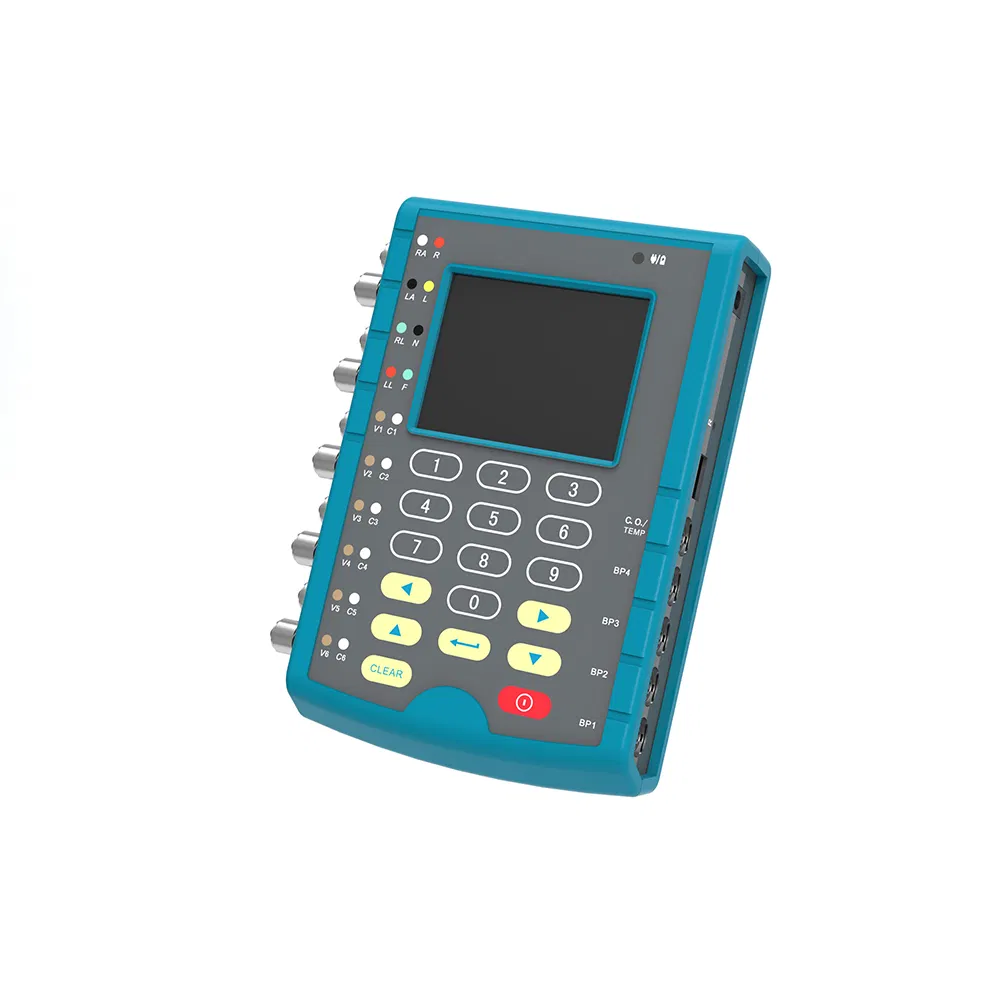

The Medical Multiparameter Patient Monitor Simulator features a compact volume and lightweight design. This multi-parameter simulator can accurately simulate 12-lead ECG, Respiration, Temperature, and 2-channel or 4-channel IBP. It is designed for testing monitors directly where they are used.

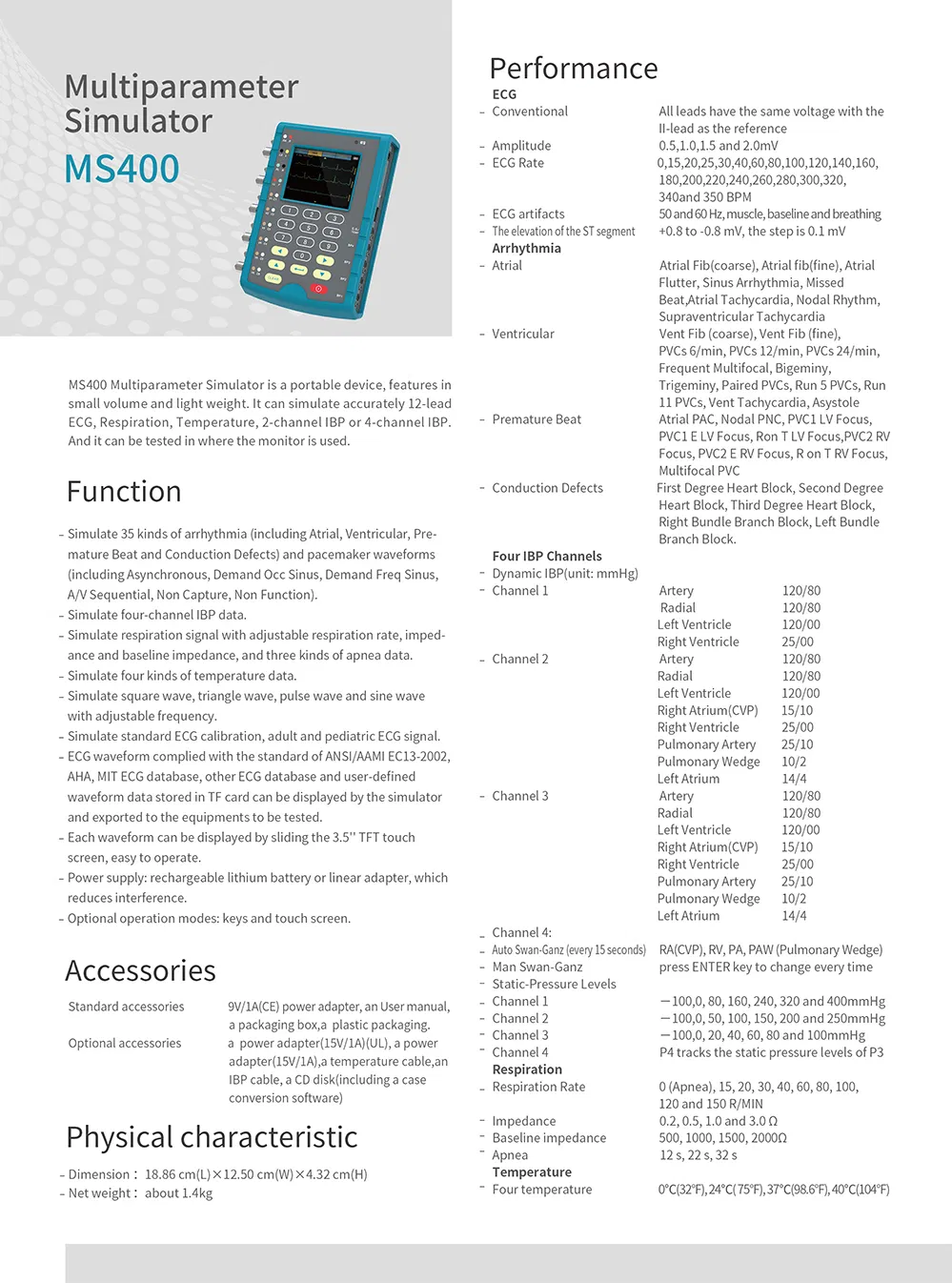

| Category | Detailed Specifications |
|---|---|
| ECG |
• Amplitude: 0.5, 1.0, 1.5 and 2.0mV • Rate: 15 to 350 BPM • Artifacts: 50/60 Hz, muscle, baseline and breathing • ST Segment Elevation: +0.8 to -0.8 mV (0.1 mV steps) |
| Arrhythmia |
• Atrial: Fib, Flutter, Sinus Arrhythmia, Tachycardia, etc. • Ventricular: Fib, PVCs (various rates), Bigeminy, Trigeminy, Tachycardia, Asystole. • Conduction Defects: 1st/2nd/3rd Degree Heart Block, Bundle Branch Blocks. |
| IBP |
• Dynamic IBP units: mmHg • Channels 1-4: Artery, Radial, Ventricle, Atrium, Pulmonary Artery, etc. • Static-Pressure Levels: Ranges from 0 to 400mmHg depending on channel. |
| Respiration |
• Rate: 0 (Apnea) to 150 R/MIN • Impedance: 0.2, 0.5, 1.0 and 3.0 Ω • Apnea duration: 12 s, 22 s, 32 s |
| Temperature | Four settings: 0ºC(32°F), 24ºC(75°F), 37ºC(98.6°F), 40ºC(104°F) |

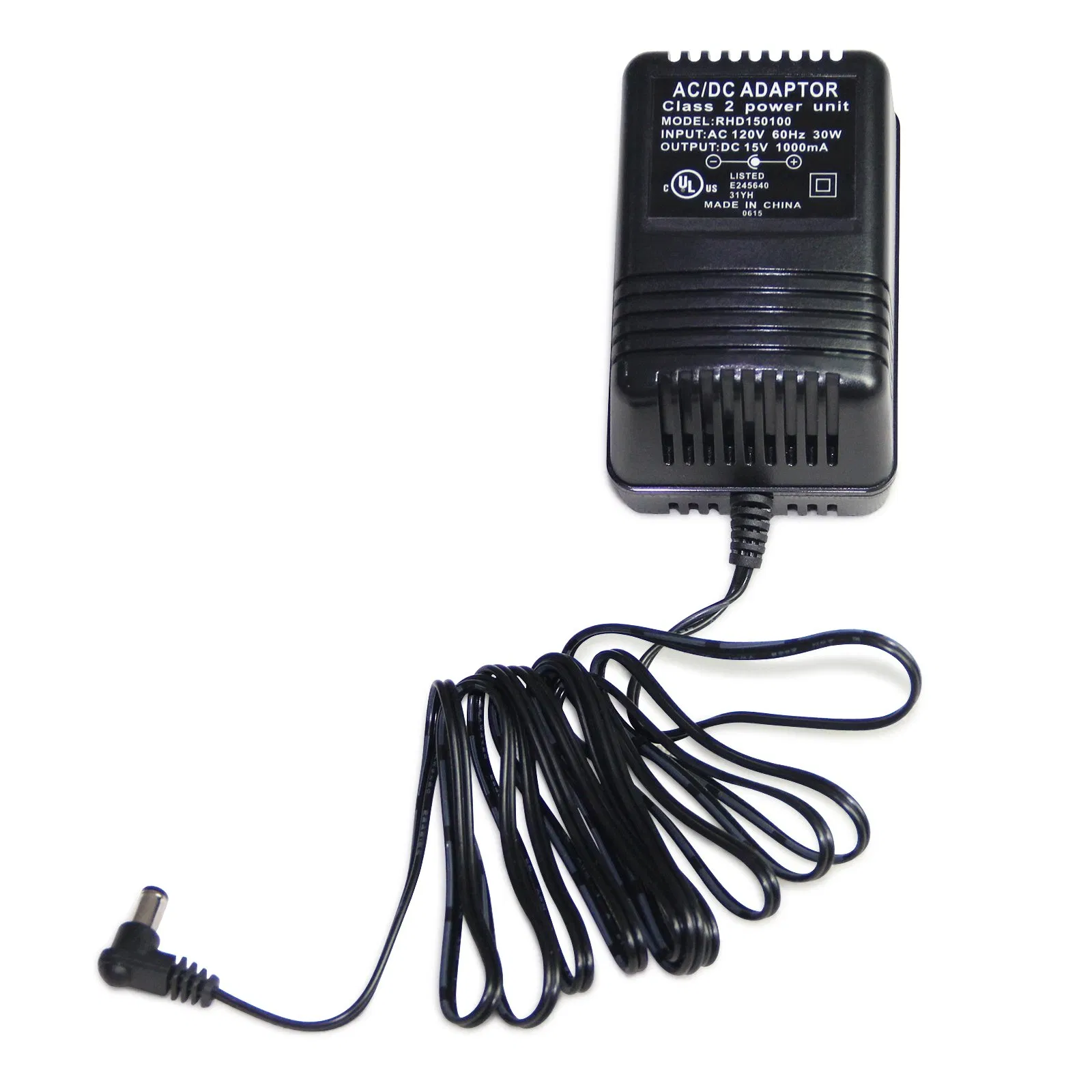

Standard Accessories: 9V/1A power adapter, User manual, packaging box.
Optional Accessories: Temperature cable, IBP cable, CD disk with conversion software, various power adapters (UL).
Dimensions: 18.86 cm(L) × 12.50 cm(W) × 4.32 cm(H)
Net Weight: Approx 1.4kg
