Contec Cms6500 Patient Monitoring Remote Patient Monitor Device

1 / 5

Contec Cms6500 Patient Monitoring Remote Patient Monitor Device

Customization:	Available
Classification:	Physiological Functions of Diagnosis and Monitoring Equipment
Type:	Patient Monitor

Send Inquiry

Product Description

Overview - Basic Info.

Model NO.

CMS6500

Certification

Group

All

Product Name

Vital Signs Monitor Patient Monitor with Touch SCR

Display Mode

7'' Color TFT LCD

Multi-Parameter

ECG, SpO2, Pulse Rate, NIBP

ECG Lead Mode

3-Lead or 5-Lead

Hr Range

15 ~ 300 Bpm

SpO2 Measurement Range

0 ~ 100%

Measurement Range

25 ~ 260mmhg

Transport Package

Carton

Specification

ECG, SpO2, Pulse Rate, NIBP

HS Code

9018193010

Production Capacity

500/Week

Detailed Photos

Product Description

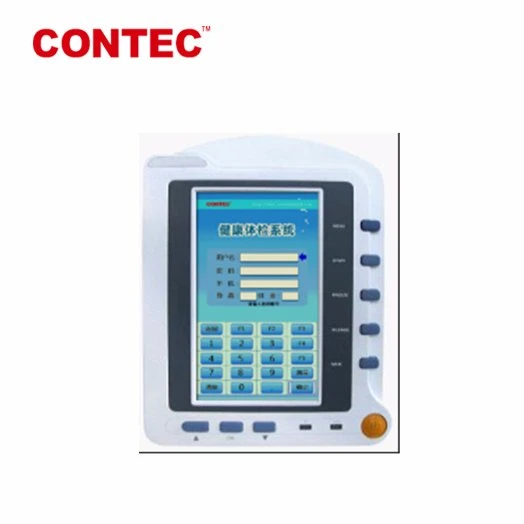

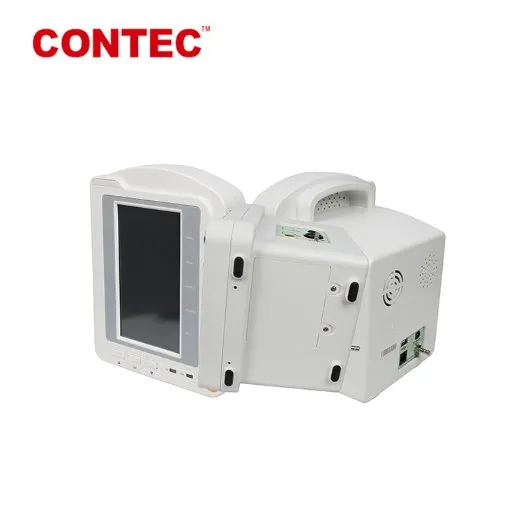

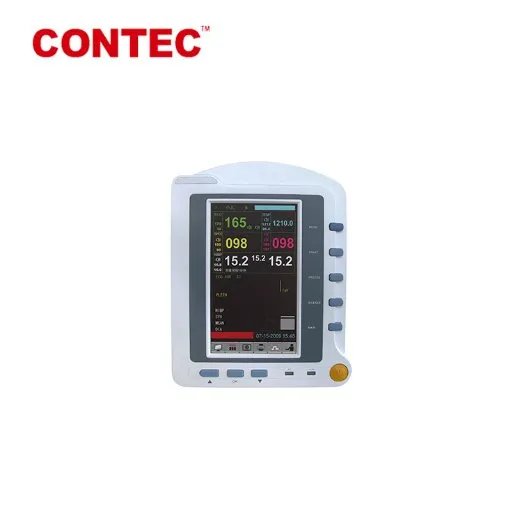

CMS6500 First-aid Patient Monitoring Device

Introduction:

Vital Signs Monitor Patient Monitor with Touch Screen CMS6500 is a portable monitor with touch screen. To ensure monitoring quality and reduce operation risk, It adopts full-isolation(floating), ECG defibrillation-proof protection, ECG anti-high frequency surgical unit and NIBP dual-overpressure protection.

Features:

Display mode: 7'' color TFT LCD with high-resolution.
Simple and shortcut for operating with touch screen.
Be applicable for adult, pediatric and neonatal for all-round monitoring.
Waveform and data can be set optionally.
Storage of 72-hour trend data, and review of 40-second holographic waveform.
Anti-high frequency surgical unit, defibrillation-proof.
Adopt digital SpO2 technology with strong anti-interference capability.
Function of NIBP review, storage for up to 400 NIBP data.
Network: Wireless and wired connection with central station.
Built-in rechargeable battery for uninterrupted monitoring.
Standard parameters of ECG, RESP, NIBP, SpO2, TEMP and PR.

ECG	Lead mode: 3-lead or 5-lead; Waveform: single-channel; Gain: 2.5mm/mV to 20mm/mV; Scan speed: 12.5mm/s to 50 mm/s
HR	Measurement and alarm range: 15~350 bpm; Accuracy: ±1 % or ±1 bpm; Arrhythmia analysis and Pacemaker supported.
RESP	Method: R-F(RA-LL) Impedance; Respiration rate: 0~150 rpm; Apnea alarm: 10~40s.
NIBP	Method: Oscillometry; Mode: Manual/AUTO/Continuous; Over-pressure protection for Adult, Pediatric and Neonatal modes.
SpO2	Measurement range: 0 ~ 100%; Resolution: 1%; Accuracy: 70%~100%: ±2%.
TEMP	Channel: single-channel; Range: 0 ~ 50ºC; Accuracy: ±0.1 ºC.
Power Supply	AC: 100 ~ 240 (V), 50/60 (Hz); Adapter: 9 (V) DC; Safety: Class I, type CF defibrillation-proof.

Standard Accessories:

Adult fingertip SpO2 probe

SpO2 probe extension cable

Adult NIBP cuff & extension tube

ECG lead cable & electrode

Temperature probe

Power cord & adapter

Physical Characteristic:

Dimension: 192 mm(L) × 162 mm(W) × 243 mm(H) | Weight: 2.0 Kg

Product List

Telemedicine products

Pulse oximeter

ECG machine / Holter ECG

Ultrasound Imaging / Fetal Monitor

Blood pressure Monitor (ABPM)

Infusion/syringe Pump

In-Vitro Diagnostics

Veterinary products

Industrial Display

Frequently Asked Questions

What patient groups can the CMS6500 monitor?

The CMS6500 is highly versatile and applicable for adult, pediatric, and neonatal patients, providing all-round monitoring across different age groups.

How long can the device store patient trend data?

The device features high-capacity storage capable of saving up to 72 hours of trend data and reviewing 40-second holographic waveforms.

Does the monitor support wireless connectivity?

Yes, the CMS6500 supports both wired and wireless network connection modes, allowing it to connect with a central monitoring station.

What are the safety protections for NIBP measurement?

The device includes dual-overpressure protection for Non-Invasive Blood Pressure (NIBP) measurement, with specific safety thresholds for adult, pediatric, and neonatal modes.

What is the display size and interface type?

It features a 7-inch color TFT LCD with high resolution and an intuitive touch screen interface for simple and shortcut operation.

Is the CMS6500 suitable for emergency or portable use?

Yes, its compact dimensions (192x162x243 mm), lightweight build (2.0 Kg), and built-in rechargeable battery make it ideal for portable monitoring and first-aid scenarios.
