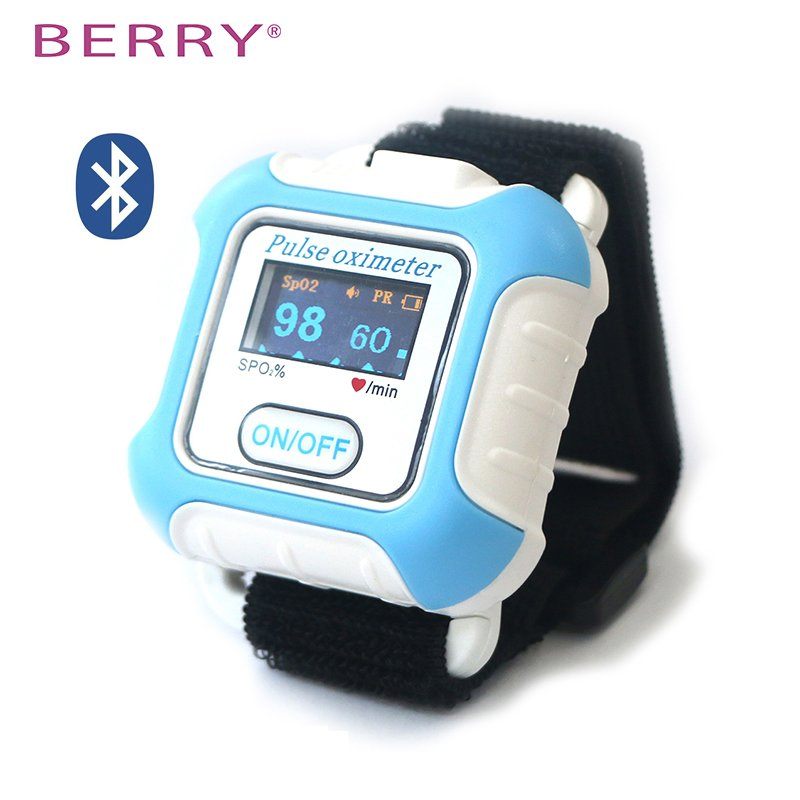

Bluetooth Medical Sleep Apneas Screening Monitor Polysomnography Device
Bluetooth Medical Sleep Apneas Screening Monitor Polysomnography Device
Bluetooth Medical Sleep Apneas Screening Monitor Polysomnography Device
Bluetooth Medical Sleep Apneas Screening Monitor Polysomnography Device
Bluetooth Medical Sleep Apneas Screening Monitor Polysomnography Device
1 / 5
Bluetooth Medical Sleep Apneas Screening Monitor Polysomnography Device
Bluetooth Medical Sleep Apneas Screening Monitor Polysomnography Device
Bluetooth Medical Sleep Apneas Screening Monitor Polysomnography Device
Bluetooth Medical Sleep Apneas Screening Monitor Polysomnography Device
Bluetooth Medical Sleep Apneas Screening Monitor Polysomnography Device

Bluetooth Medical Sleep Apneas Screening Monitor Polysomnography Device

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
BM2000A
Certification
CE, FDA, ISO13485
Group
Adult and Child
Color
Blue
Experience
with 15 Years Manufacturer
Quality
ISO13485 Ce0123
HS Code
9018191000
Capacity
50000PCS/Year

Sleep Monitoring System

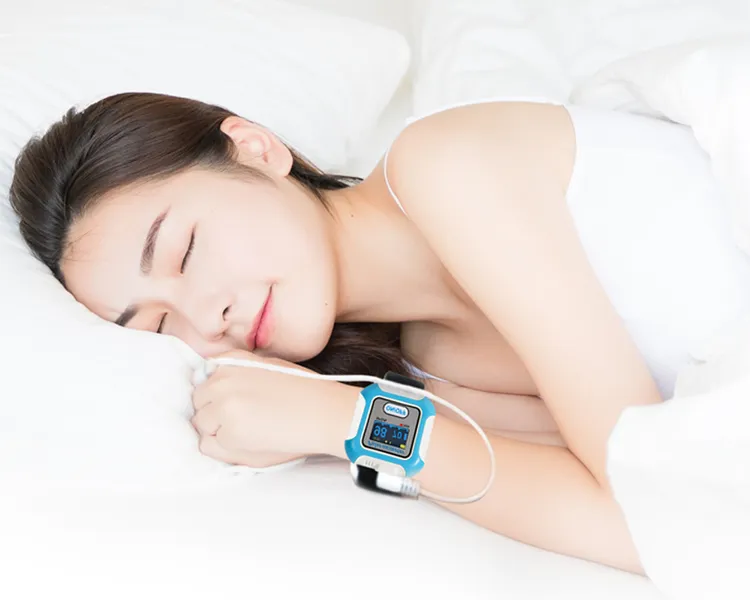

Sleep Apnea Monitor

BM2000A Sleep Monitoring System is designed specifically for sleep hypopnea syndrome monitoring. It accurately captures pulse signals and has been validated through numerous clinical trials to meet high-standard measurements of blood oxygen and pulse rate.

Major Features

  • Suitable for sleep or Apnea respiratory monitoring, especially hypopnea monitoring.
  • Clinical validation: Contrast experiments with PSG for reliable diagnosis.
  • Ultra-low power consumption: 3.7V lithium battery lasts for over 20 hours.
  • Multi-age support: Sensors available for infants, children, and adults.

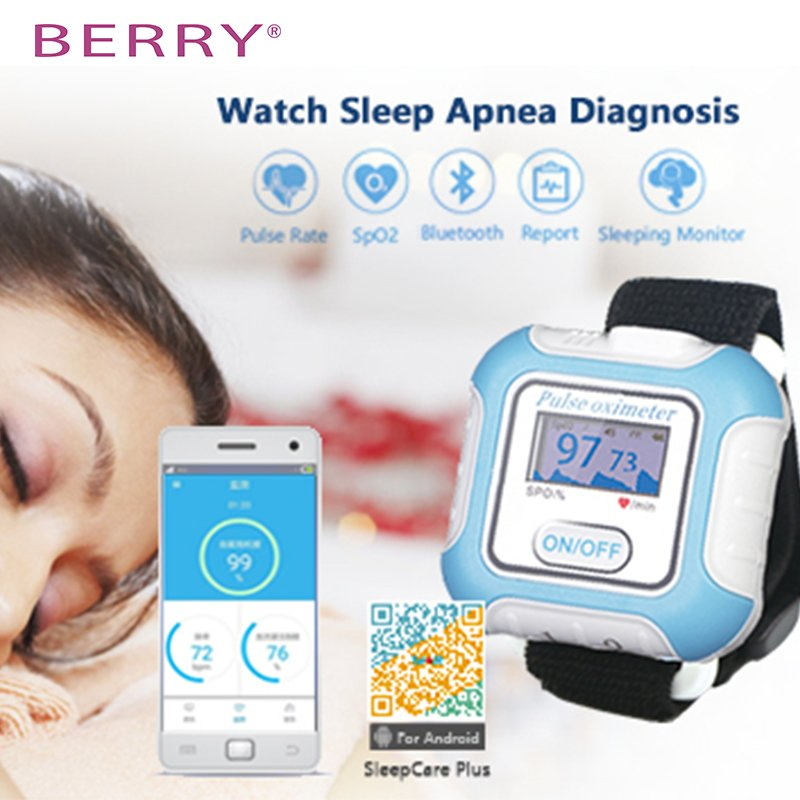

  • Bluetooth Connectivity: Real-time data storage and feedback via mobile app.

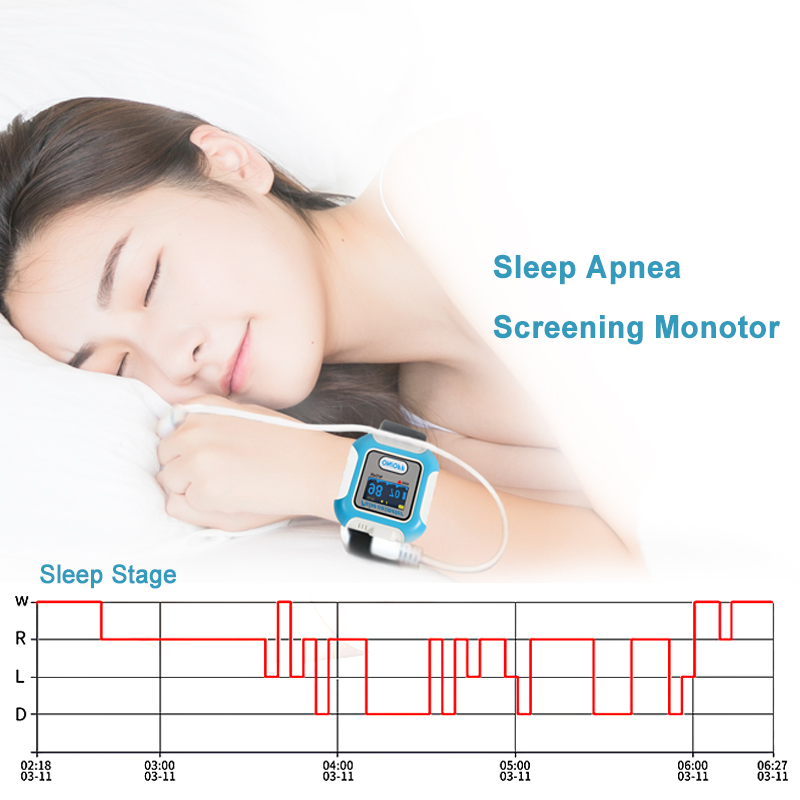

Usage Scenario

Operation Process

1
Download the App from Google Play or Apple Store.
2
Wear the equipment for at least 6 hours of sleep monitoring.
3

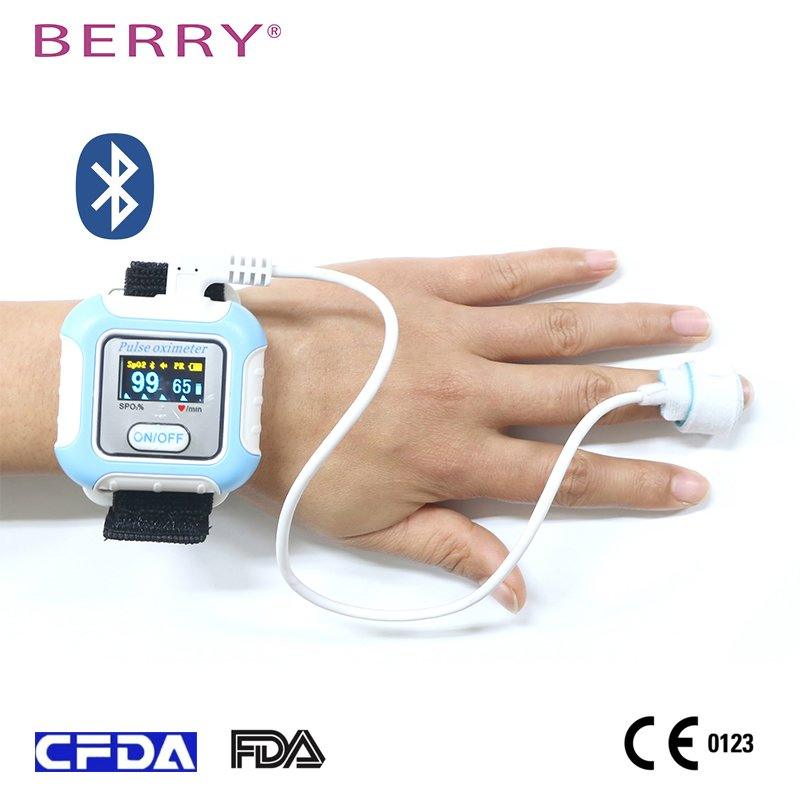

Wrap the foam SpO2 sensor securely around the fingertip.
4
Transfer collected data to the mobile phone via Bluetooth.
5
Display and share comprehensive sleep reports on your phone.

Technical Features

Parameter Specification
SpO2 Range 35% - 100% (Accuracy: ±2% for 80-100%)
Pulse Rate 25 - 250bpm (Accuracy: ±2bpm)
Battery Type 3.7V (1000mAh) Rechargeable Lithium
Size & Weight 68(L)x58(W)x20(D)mm / 50g

Clinical Data Analysis

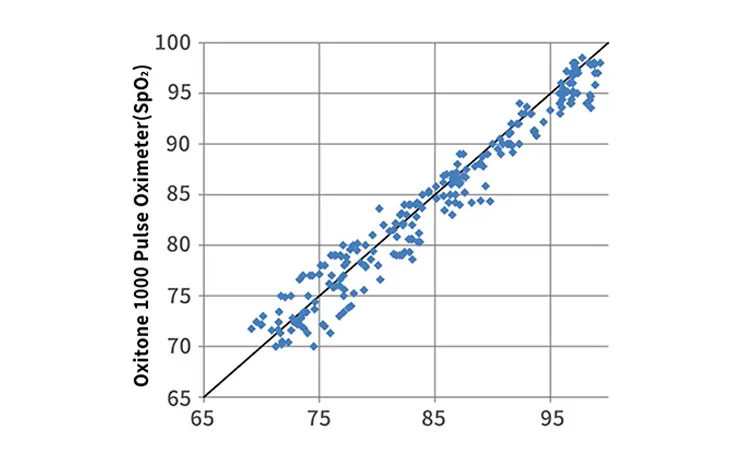

Accuracy Test 1

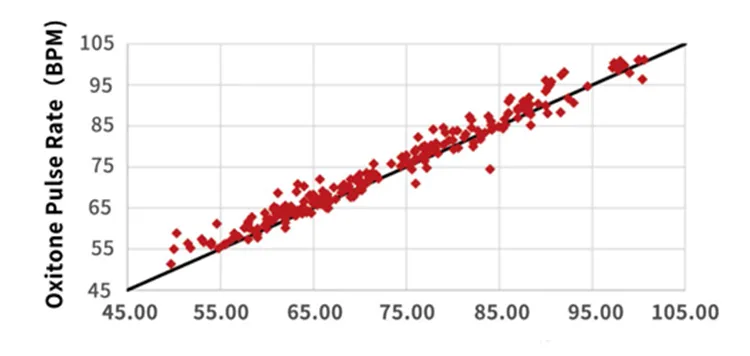

Accuracy Test 2
OSAHS Judgment Results
Sensitivity: 94.17% Specificity: 61.21% Accuracy: 89.62%

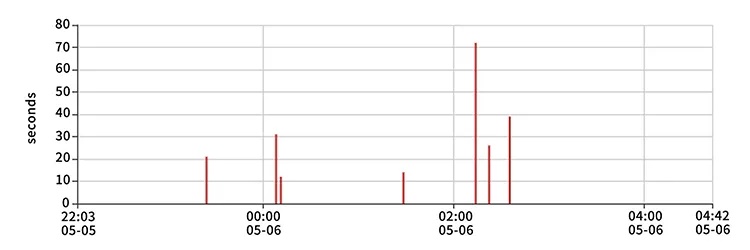

Apnea Trend

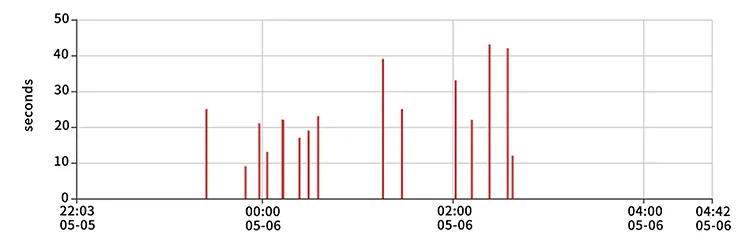

Hypopnea Trend

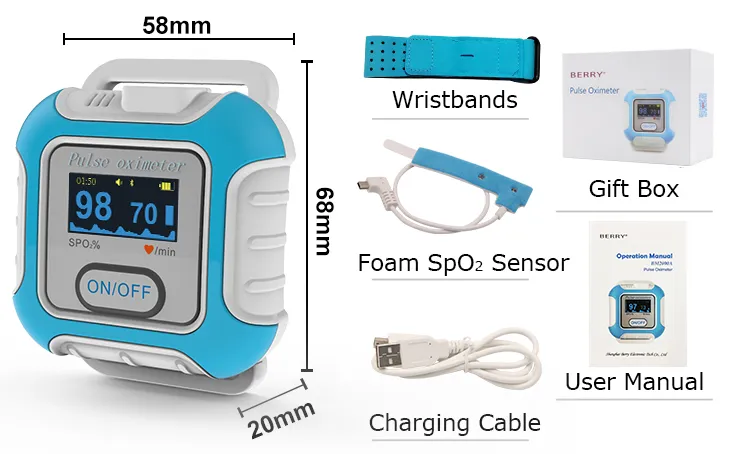

Standard Configuration

Standard Kit
  • Adult Probe
  • Child Probe
  • Neonate Probe
  • Gift Box & User Manual

Frequently Asked Questions

What is the primary use of the BM2000A?
It is primarily used for monitoring sleep apnea and hypopnea syndrome by tracking blood oxygen levels and pulse rates during sleep.
Is this device medically certified?
Yes, the device holds 510K, CE0123, ISO13485, FCC, and RoHS certifications, meeting international medical standards.
How long can the device monitor on a single charge?
The 3.7V rechargeable lithium battery provides more than 20 hours of continuous monitoring.
Can it be used for children or infants?
Absolutely. The system includes various types of sensors suitable for infants, children, and adults of different skin colors.

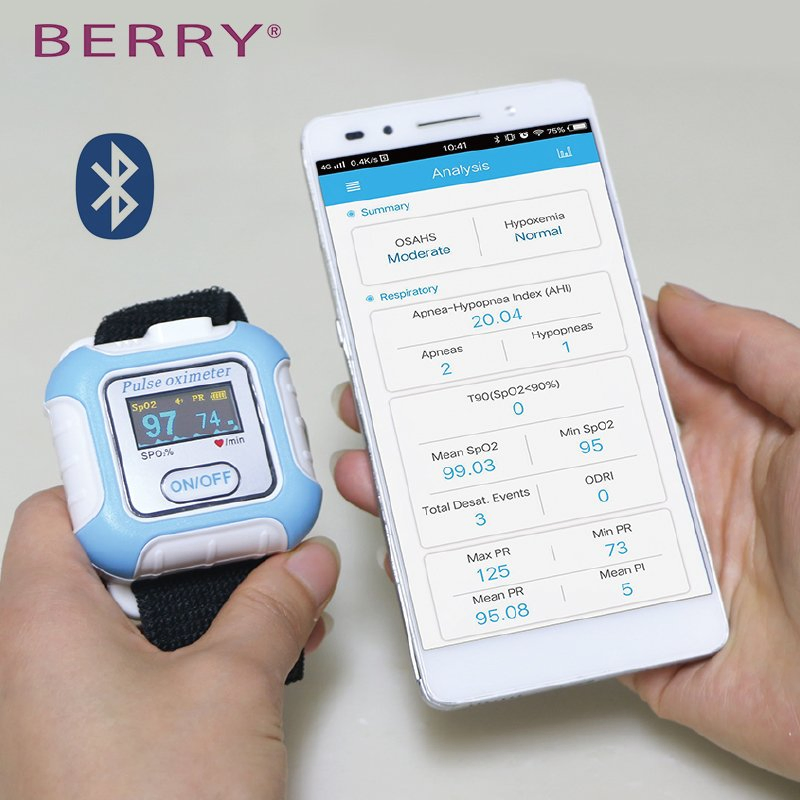

How can I view the sleep reports?
Data is transferred via Bluetooth to the "BerrySmartHealth" App, where you can view real-time data and generate night-long sleep reports.
How accurate is the oxygen concentration measurement?
The device offers high accuracy with less than 2% error for SpO2 levels between 80% and 100%, exceeding many standard requirements.
