Product Description

📊Basic Info.

Item Name

Patient Monitor

Certification

ISO13485, FSC

Group

Adults, Children and Newborns

LCD Display

12.1-inch Colorful TFT LCD Display

Purpose

Oxygen Breathing

Origin

China

Capacity

20000 sets/Month

HS Code

9019200000

🩺Product Description

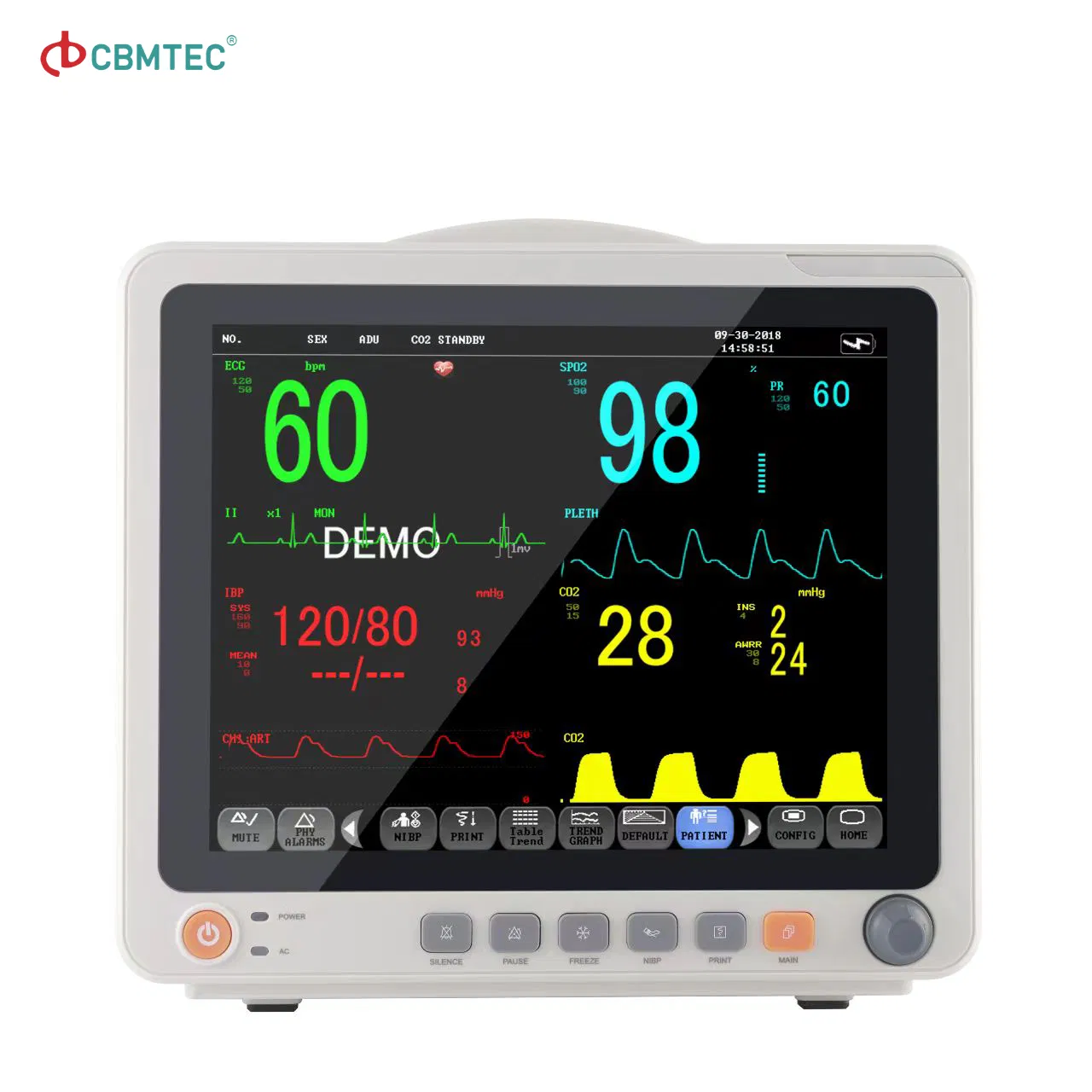

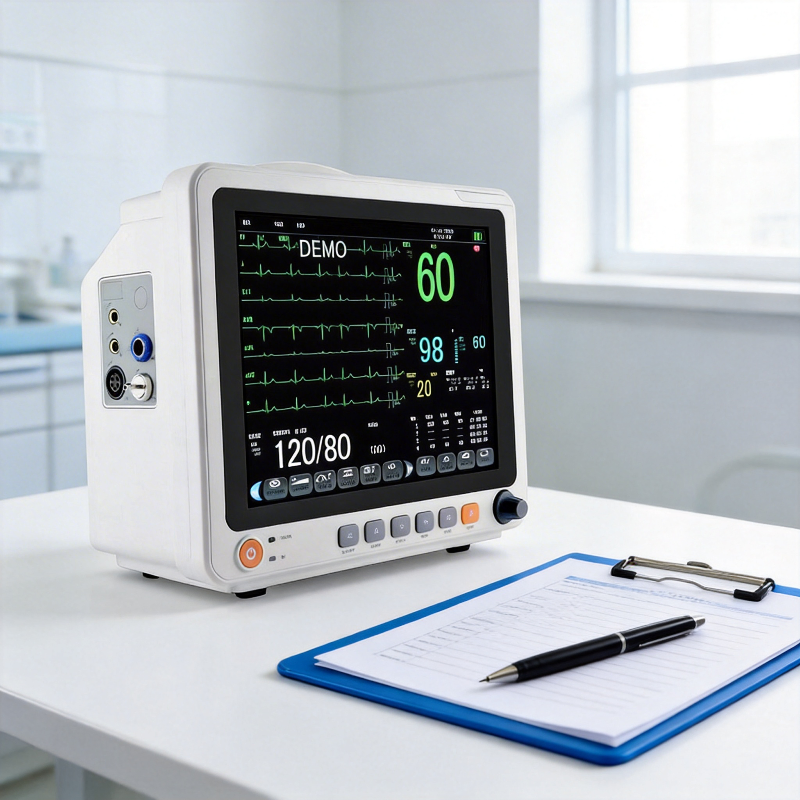

Medical Supply Multi-Parameter TFT LCD Vital Sign Patient Monitor

Key Specifications & Features:

High brightness and resolution 12.1-inch colorful TFT LCD display with big font screen option.
All leads, seven-channel synchronous ECG display for comprehensive monitoring.
Built-in li-ion battery supporting up to 240 minutes standby time with AC/DC power conversion.

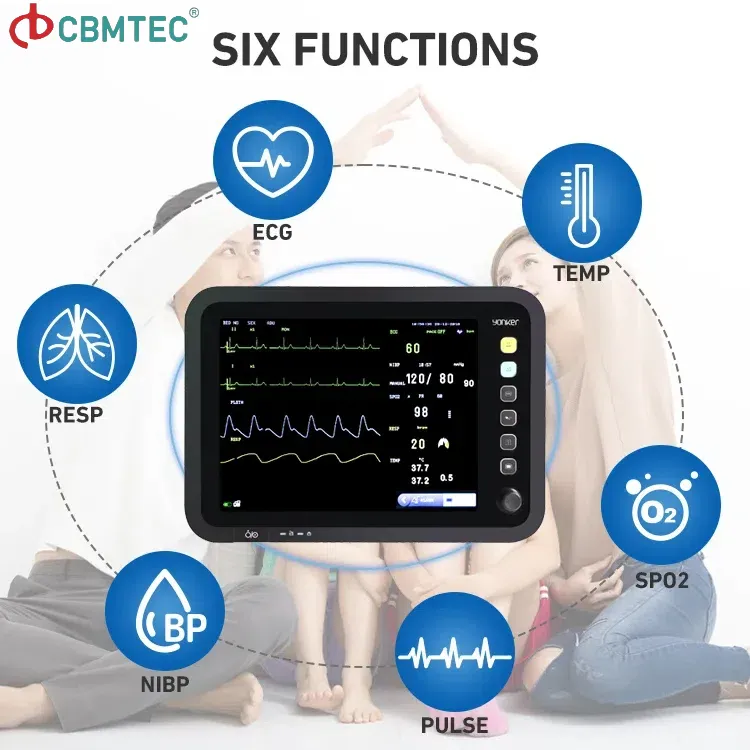

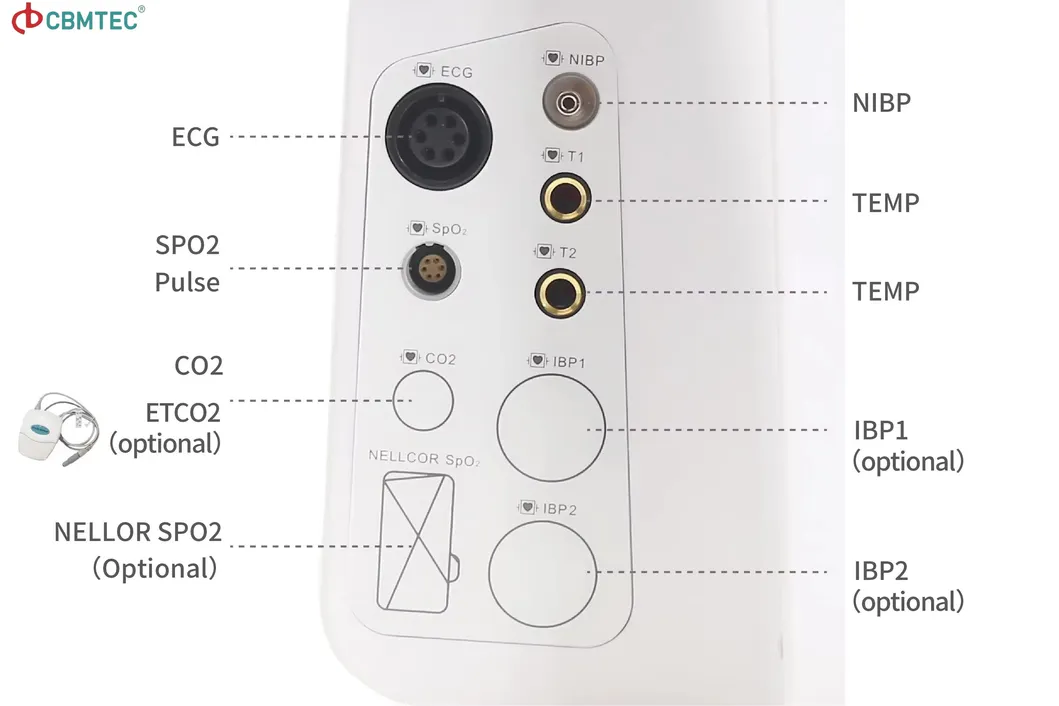

Standard parameters: ECG, HR/PR, SPO2, NIBP, RESP, TEMP.
Full digital SpO2 technology with excellent performance in low perfusion and movement.
Data Management: USB data export (PDF support), WIFI module support, plug and play.
NIBP dual over-pressure protection ensures patient safety even in severe environments.
Triple alarm levels: Sound, light, and on-screen messages for maximum clinical awareness.
Large Storage: 43,200 trend points, 2,000 data sets, and 200 alarm event groups.
Advanced Analysis: Pacemaker, ST segment, and arrhythmia analysis, plus drug concentration titration.
Wide-range heart rate design (15-350BP) specifically optimized for newborns.
Multi-language support for 16 languages including English, Spanish, Russian, and French.

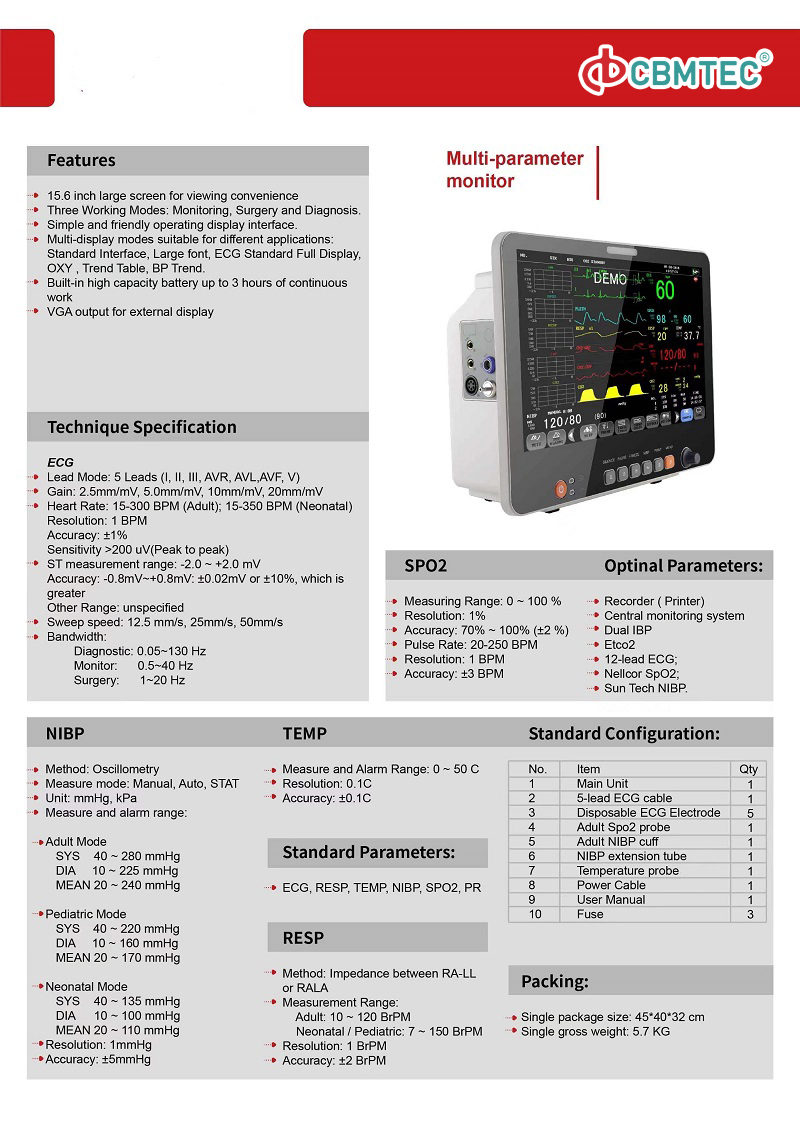

📋Technical Specifications

Module	Technical Specifications	Module	Technical Specifications
ECG	Lead mode: I, II, III, AVR, AVL, AVF, V1-6; Gain: ×0.25 to ×2; ST Detection: -2.0mV to +2.0mV; Response time: 1s.	NIBP	Technology: Oscillography; Mode: Manual/Auto; Range: SYS 60-250 mmHg, DIA 40-220 mmHg; Dual over-pressure protection.
SPO2	Range: 0-100%; Accuracy: 1%; Pulse frequency: 20-250 bpm; Sound and light alarm with adjustable thresholds.	TEMP	Technology: Thermostat probe; Range: 20°C-45°C; Resolution: 0.1%; Accuracy: ±0.1°C.
RESP	Breathing frequency range: 0-60 rpm; Accuracy: ±1rpm; Gains: ×0.25 to ×2; Adjustable ceiling/threshold alarms.	System	Screen: 12.1-inch TFT LCD; Battery: Sealed maintenance-free lithium; Safety standard: IEC601-1 (GB9706.1).

🖥️Interface & Display

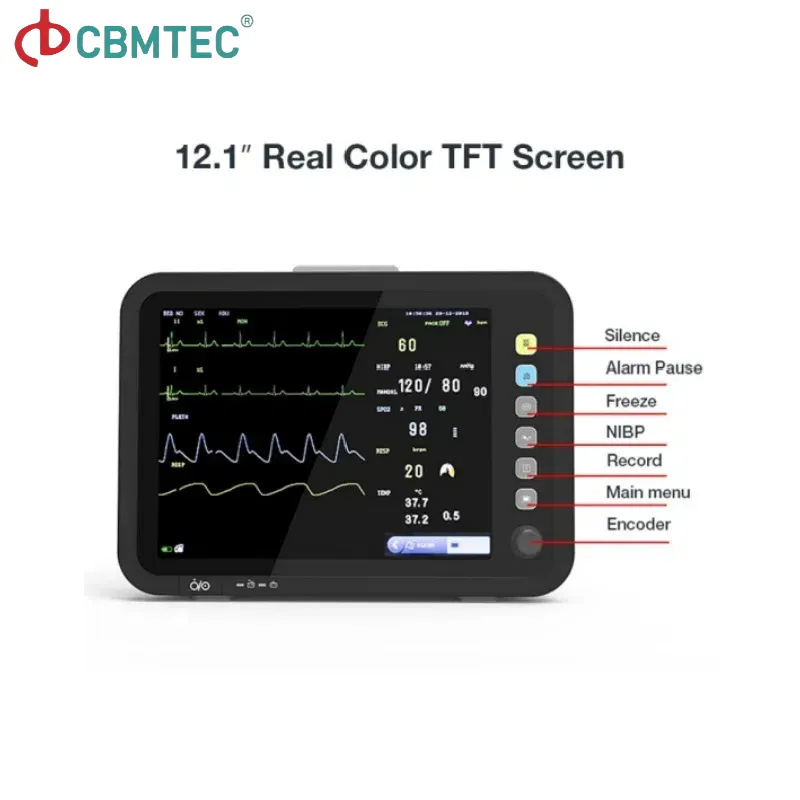

Simple and Friendly Operating Interface:

Touch screen operation for quick access to functions.
Displays more than 8 parameter waveforms simultaneously.
Anti-interference from high-frequency electric knives.

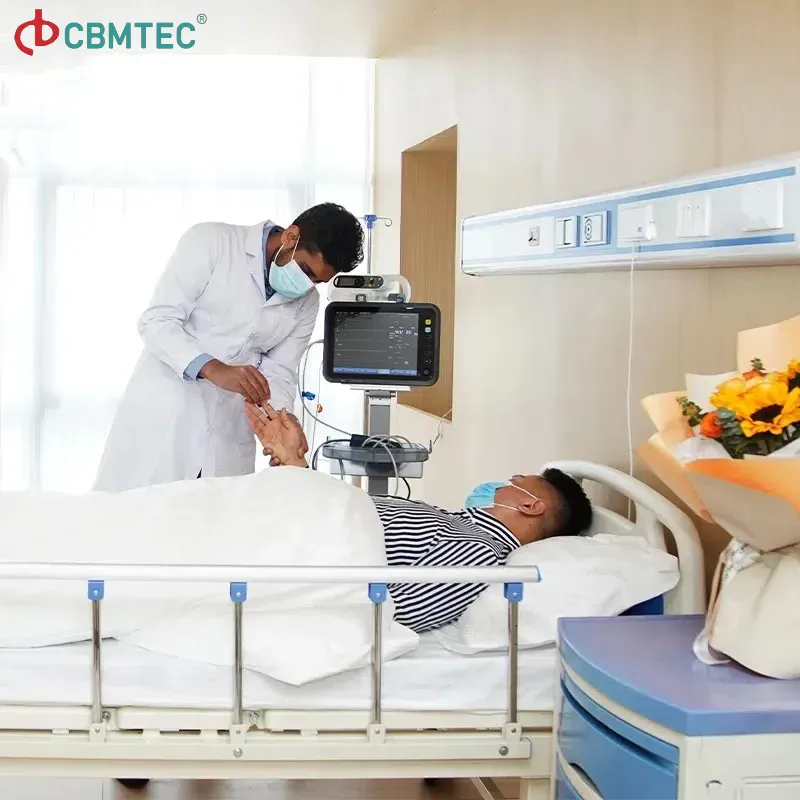

Long-term waveform playback and 7-day trend chart storage.

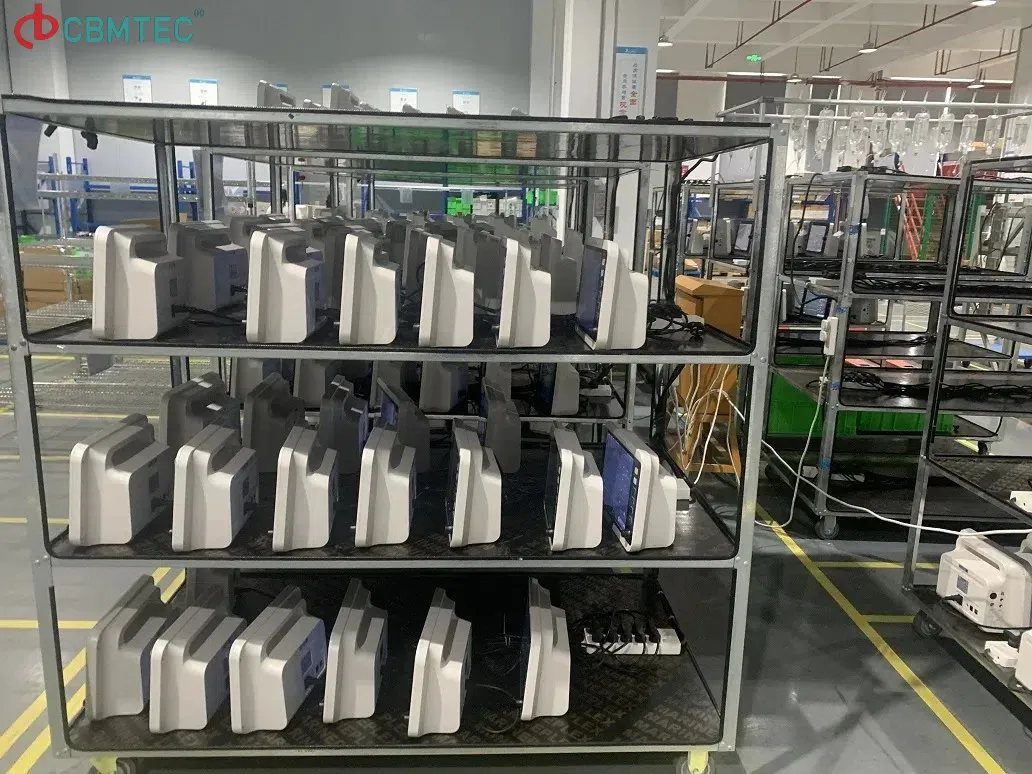

🏭Manufacturing & Warehouse

🌍Exhibition & About Us

We are a professional manufacturer and supplier of Medical Gas Equipment, including Gas Cylinders Regulators, Oxygen Flowmeters, and Medical Gas Supply Systems. We adhere to the concept of "Quality First, Superior Service" and provide a comprehensive range of medical products for hospital construction, diagnosis rooms, and operating theaters.

💎Our Advantages

Original Manufacturer	Professional equipment including Punch Machines and Medical Gas Machines.
Large Output	Capability to produce more than 50,000 units per month.
Quality Control	ISO13485 Quality Management system; 100% factory tested.
Cost Benefits	Competitive pricing due to professional scale economy.
Export Experience	Over 15 years of experience in global exporting.

❓Frequently Asked Questions

1. What patient groups can this monitor be used for?

This patient monitor is designed with specialized settings to support monitoring for Adults, Children, and Newborns.

2. What are the standard monitoring parameters?

The standard parameters include ECG, Heart Rate/Pulse Rate (HR/PR), SpO2, Non-Invasive Blood Pressure (NIBP), Respiration (RESP), and Temperature (TEMP).

3. How long does the battery last?

The built-in rechargeable lithium battery provides a standby time of up to 240 minutes, ensuring continuous monitoring during patient transport or power failures.

4. Can I export the monitoring data to a computer?

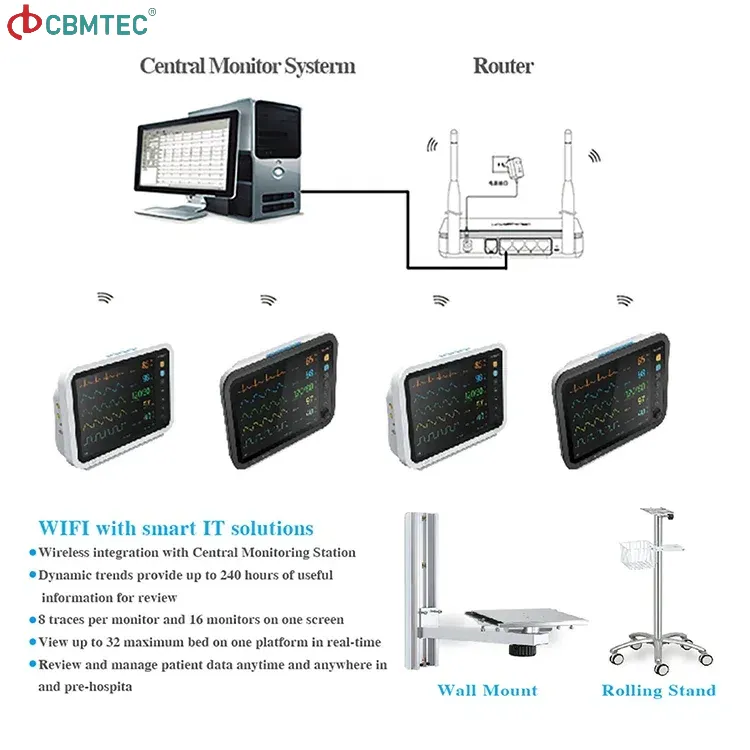

Yes, the device supports USB data export to a computer, including support for PDF formats. It also supports wireless central monitoring via a USB WIFI module.

5. Does the device have alarm functions for patient safety?

Yes, it features a 3-level alarm system with audible sounds, visible lights, and on-screen messages for physiological and technical alerts.

6. How many languages does the system support?

The system supports 16 languages, including English, Chinese, Spanish, Portuguese, Russian, French, German, and many others.
