Product Description

Basic Information

Model NO.	sleep fairy-a9
Certification	CE, ISO13485, Free Sale Certification
Group	Middle-aged and Old
Channel	9 Channels
Transport Package	Device Packed in Portable Bag with Outer Carton
Specification	0.9kgs included packing
Origin	China
HS Code	90181990
Production Capacity	1000sets/Month

1. What is Sleep monitor?

The sleep monitor device is a brand new intelligent diagnosis system for sleep disorders and sleep apnea, which is suitable for clinic, hospital, sleep centre, and home usage, especially for screening of Sleep Apnea Syndrome (SAS). It provides multiple monitor recordings and reports of sleep, enabling sleep physicians to provide professional treatment proposals and therapy pressure titration.

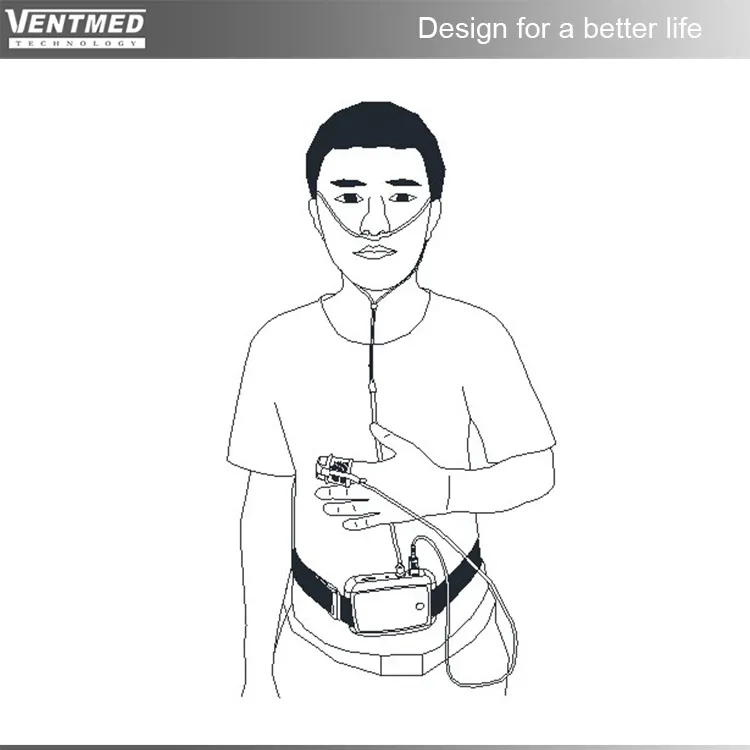

Patients can be tested in the comfort and convenience of their own homes without an observer and with fewer sensors attached to their body. This reduces anxiety, leads to a more natural night of sleep and improves patient acceptance of test protocol.

This device meets all American Academy of Sleep Medicine (AASM) requirements.

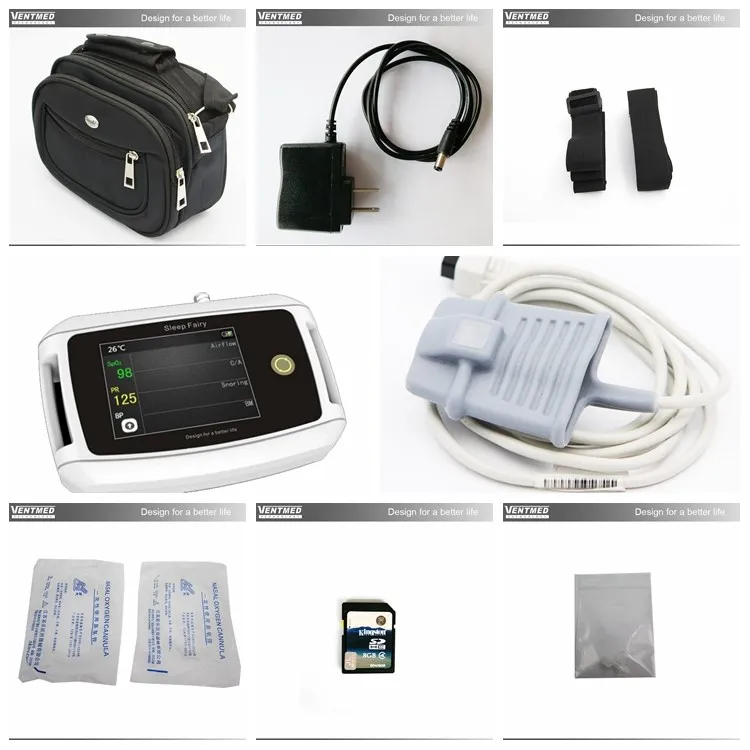

2. Product Structure

The delivery parts include:

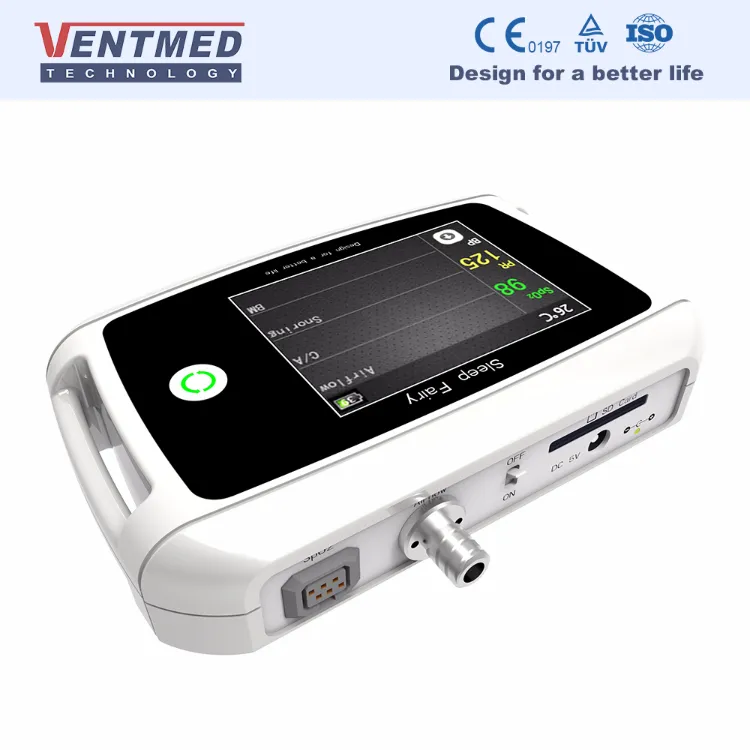

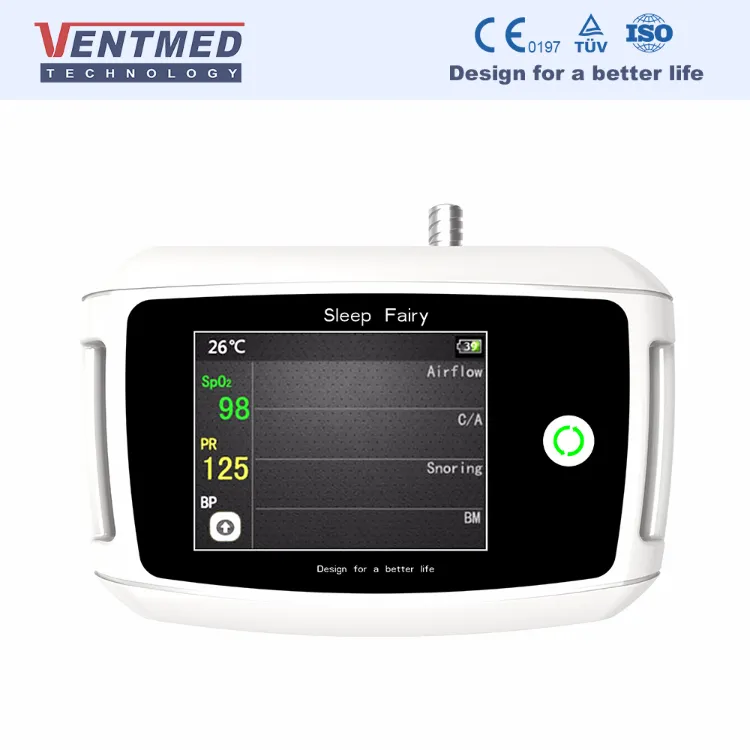

11 pc sleep monitor device host

22 pcs Luer Connector (Spare parts)

31 pcs SpO2 sensor

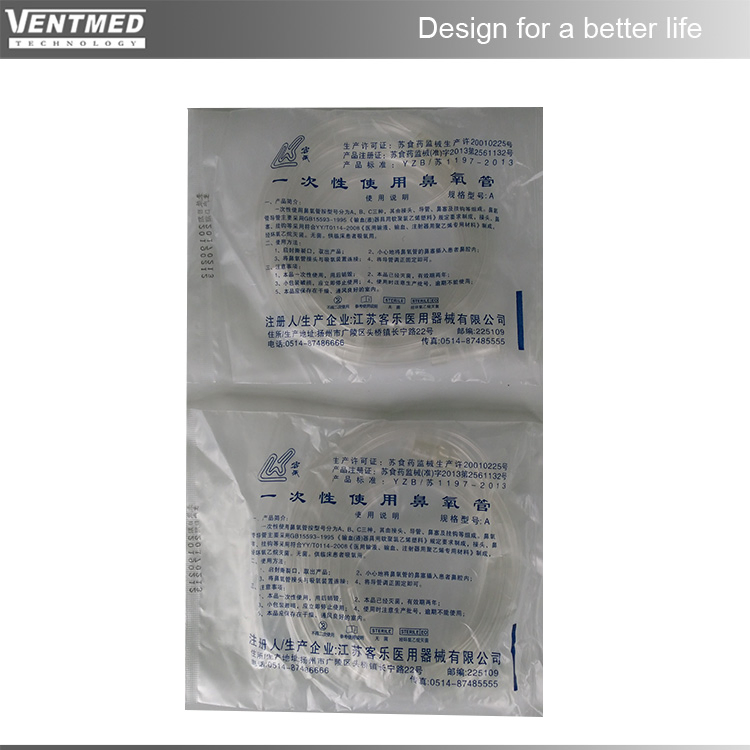

42 pcs Nasal Oxygen Cannula

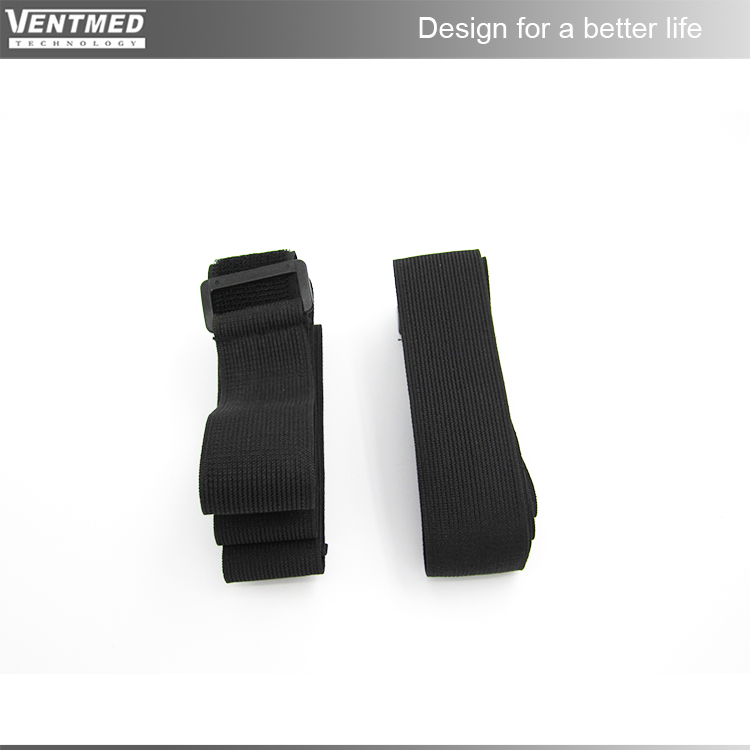

52 pcs fixing band

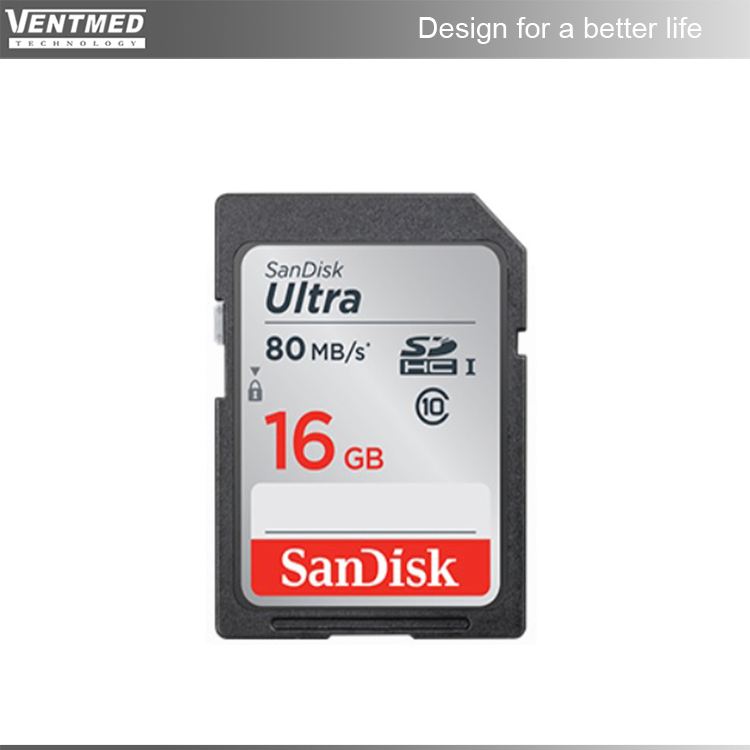

61 pcs SD card

71 pcs SD card reader

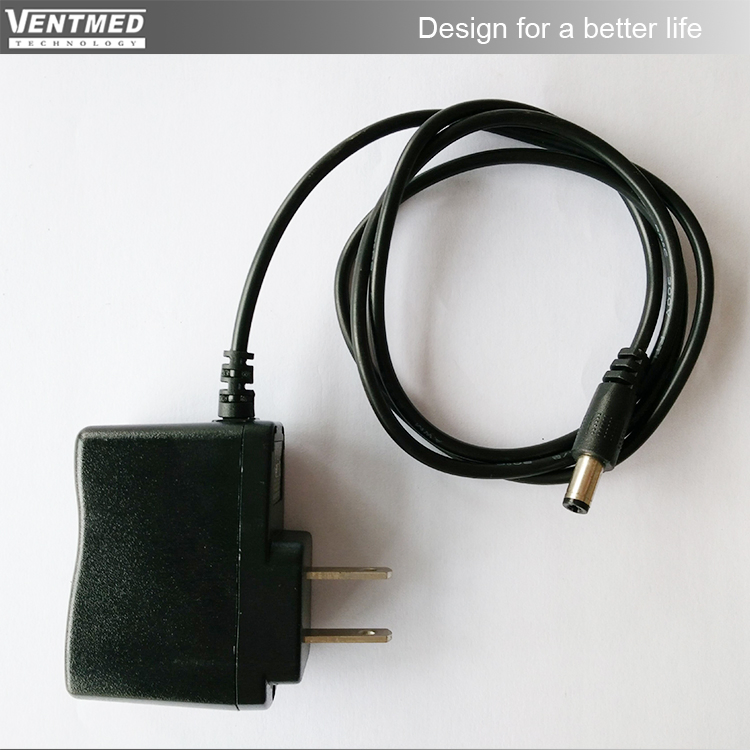

81 pcs Charger

91 pcs Carrying bag

3. Specification

9 Channels	Air flow, Snore, SpO2, Pulse Rate, Pulse Wave, Body Position, Body Movement, Respiratory Effort, CPAP Pressure
Data resolution	AD : 12Bit
Sampling Rate	50-200Hz
Storage Data	8G, over 8000 hours data
Communication	SD card
SpO2 Range	70% - 100%
Pulse Rate	30 - 240 bpm
Battery	Integrated Rechargeable Lithium Battery, 2500mAh, 30 hours continuous monitoring

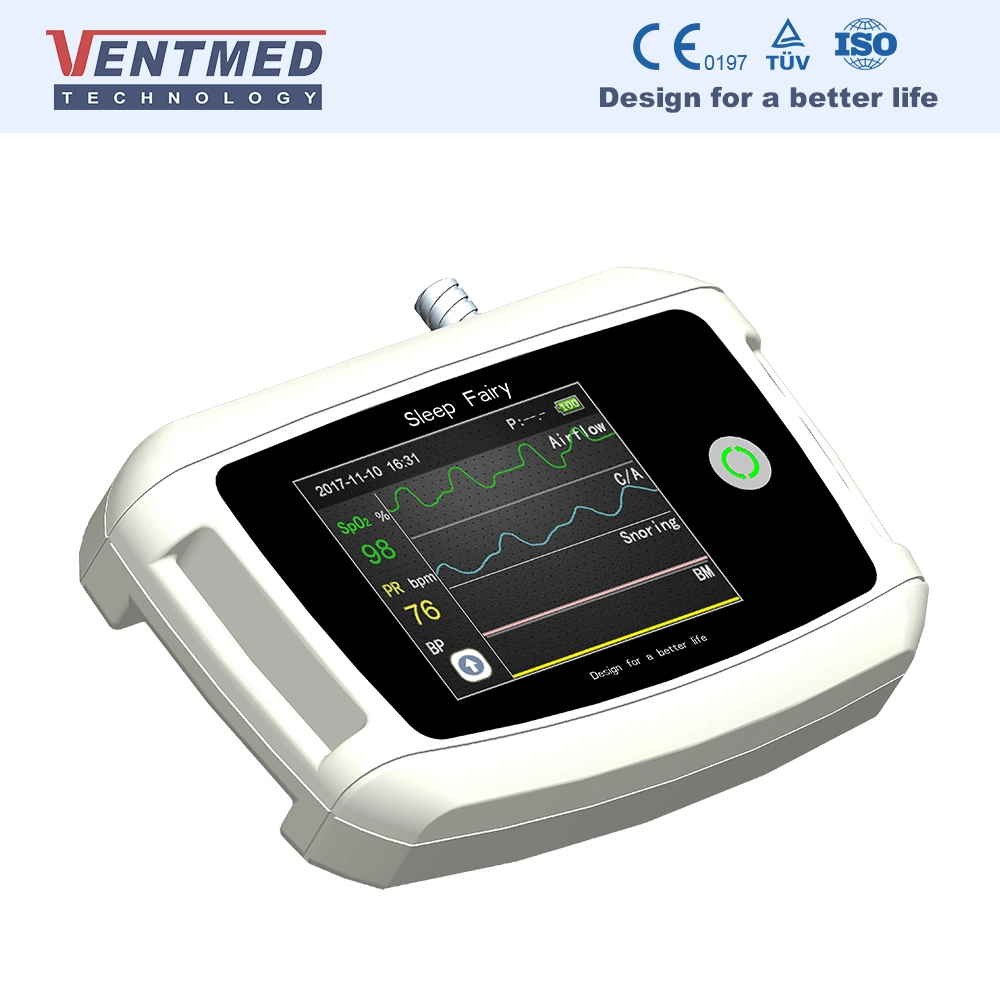

Screen	2.8 inch TFT, 320 x 240
Net Weight	176g with battery
Dimensions	125mmL x 80mmW x 24mmH

4. Features

✓Compact, light and convenient for portable use.

✓Innovative 3D sensor built-in; only SpO2 sensor is needed. No extra sensors for movement or respiratory effort required.

✓Extremely easy to operate with a single switch.

✓Provides extensive, detailed, and accurate clinical sleep data.

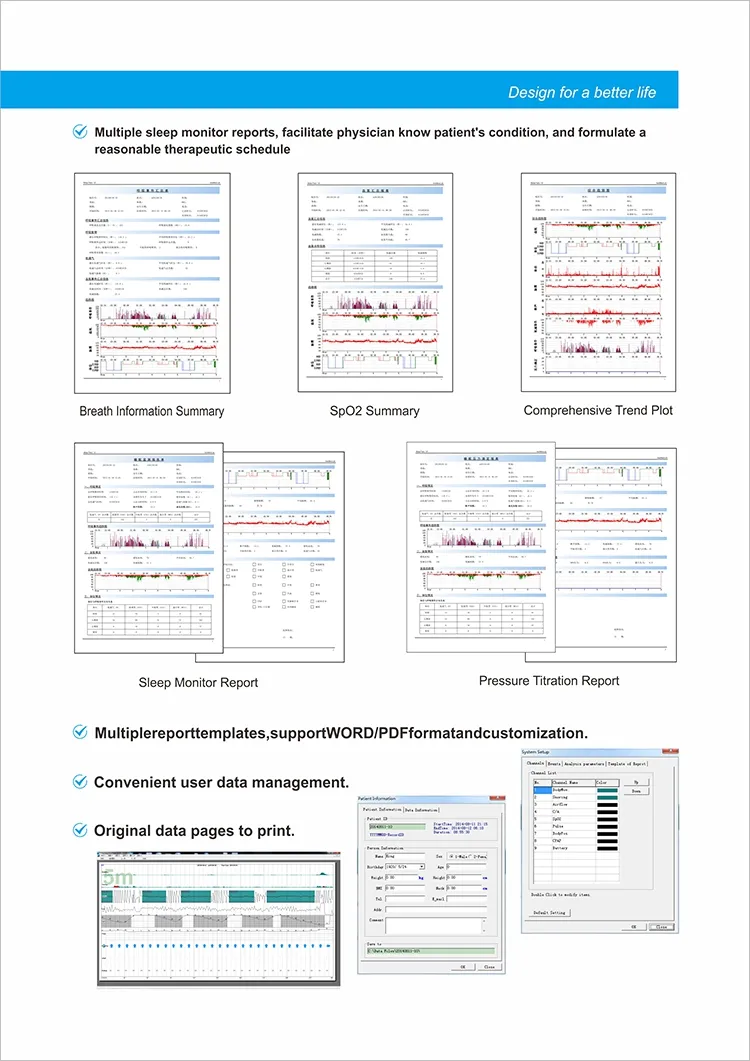

✓Sophisticated scoring and diagnostic report software included.

✓Ability to link to CPAP devices for pressure titration.

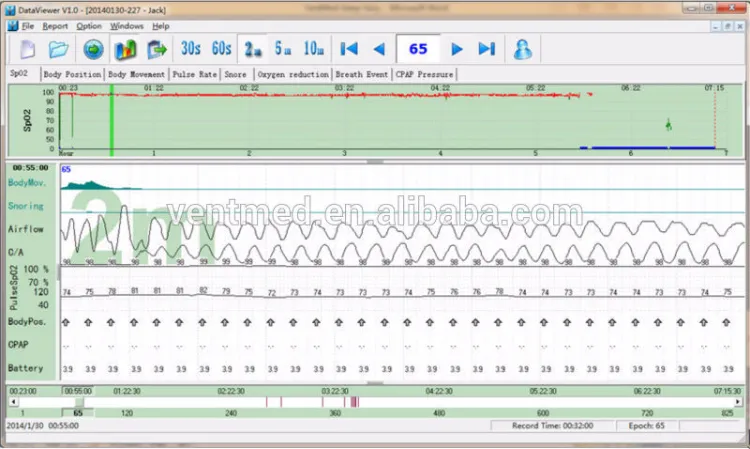

✓SD storage data easily read by PC software for image display and report printing.

5. Why choose us?

★Professional research & development team.

★Experienced manufacturer specializing in breathing & sleep therapy and monitoring.

★Responsible service: response within 24 hours, 2-year quality warranty, and short delivery times.

★Trustable supplier with a reputation for top quality and competitive pricing.

Frequently Asked Questions (FAQ)

Q1: Can this device be used for home sleep testing? A: Yes, it is specifically designed for home usage, allowing patients to be tested in comfort without an observer.

Q2: Does it require a lot of wires and sensors? A: No, thanks to the innovative 3D sensor, it requires fewer sensors (primarily the SpO2 sensor) compared to traditional systems.

Q3: How many hours of data can it store? A: With an 8G SD card, it can store over 8000 hours of detailed sleep data.

Q4: How long does the battery last on a full charge? A: The integrated 2500mAh lithium battery supports up to 30 hours of continuous monitoring.

Q5: Is the test report professional enough for a doctor? A: Yes, the device meets AASM requirements and includes sophisticated software to generate detailed clinical reports for physicians.

Q6: What is the warranty period for this device? A: We offer a 2-year quality warranty for this sleep monitor system.
