Basic Information
Model NO.

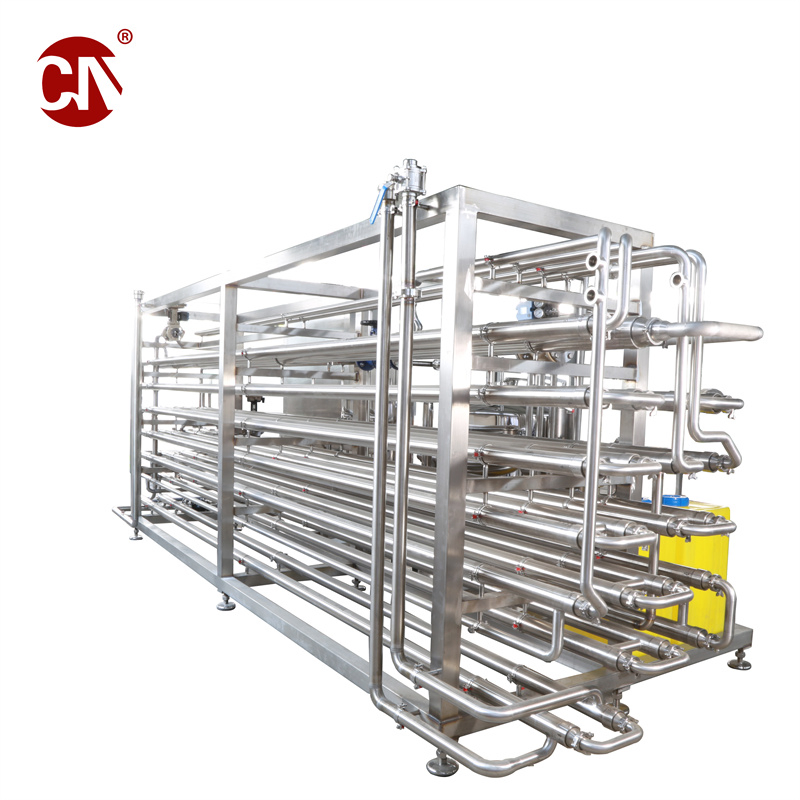

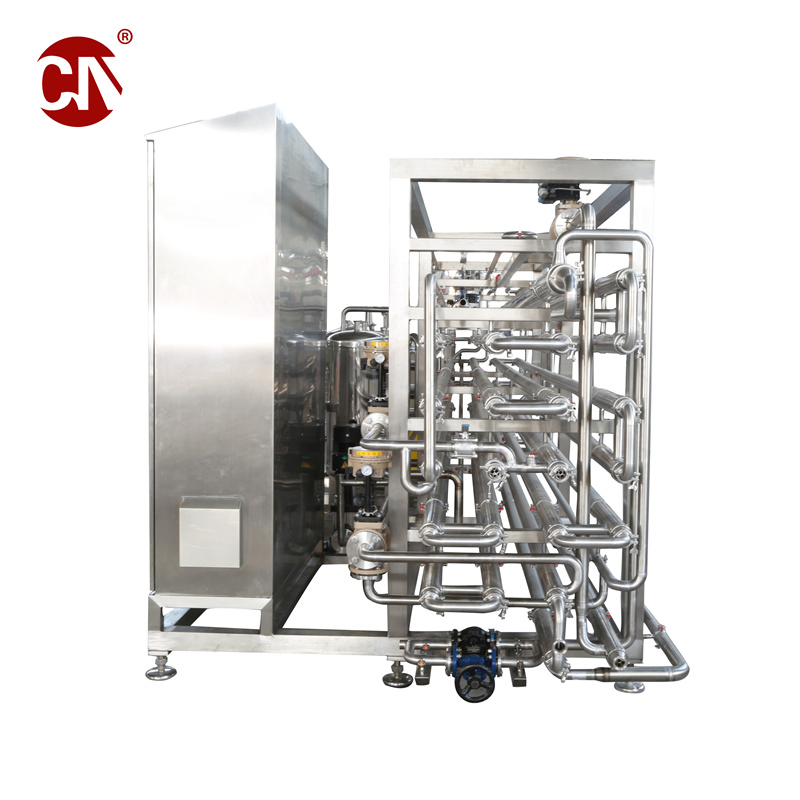

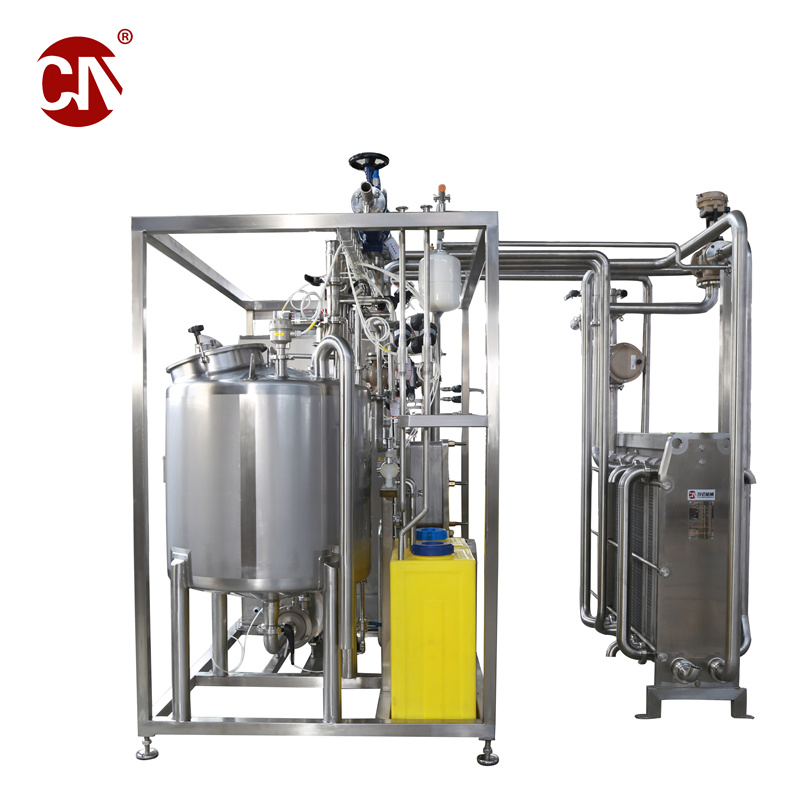

Pasteurizer Sterilization Equipment
Certification
CE, FDA, EEC, ISO13485
Type
Pasteurization Machine
Power
318V, 50Hz, Customized Optional
Capacity
1000lph, 2000lph, Custmized Optional
Main Features
- Suitable for different kinds of liquid food, such as Yogurt, Milk, Juice, etc.
- Easy to operate and clean.
- Fully automatic sterilization function.
- High temperature control accuracy.
- Excellent heat exchange effect.
- Highly energy saving.
Specifications
| Material Handling Capacity |
1000L/H |
Enter Temperature |
45~60ºC |
Power Supply |
380V 50HZ |
| Sterilization Temperature |
85~88ºC |
Steam Consumption |
About 300KG/h |
| Keeping Time |
15~30S |
Outlet Temperature |
2~15ºC |
Cooling Water Requirement |
≥4000L/H |
| Plate Material |
SUS316L |
Outer Tube |
SUS304 |
Control Precision |
Within ±0.5ºC |
| Equipment Weight |
2000KG |
Dimensions |
2200*1800*2500 mm |
Technical Requirements
Working Conditions:
• Static viscosity <4000cp, solid content 12%~50%.
• Process: Feeding 45-60ºC -> Homogenization 70-80ºC -> Sterilization 85-88ºC -> Exit 2-15ºC.
• Compressed air: ≥0.6Mpa (water and oil removed).
• Steam pressure: ≥3bar.
Design Capabilities:

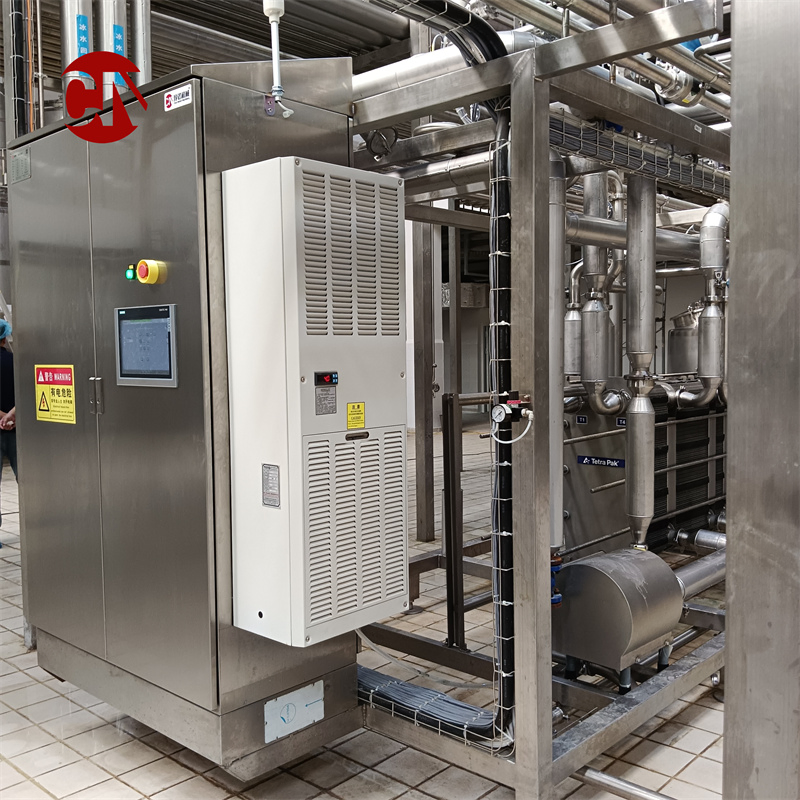

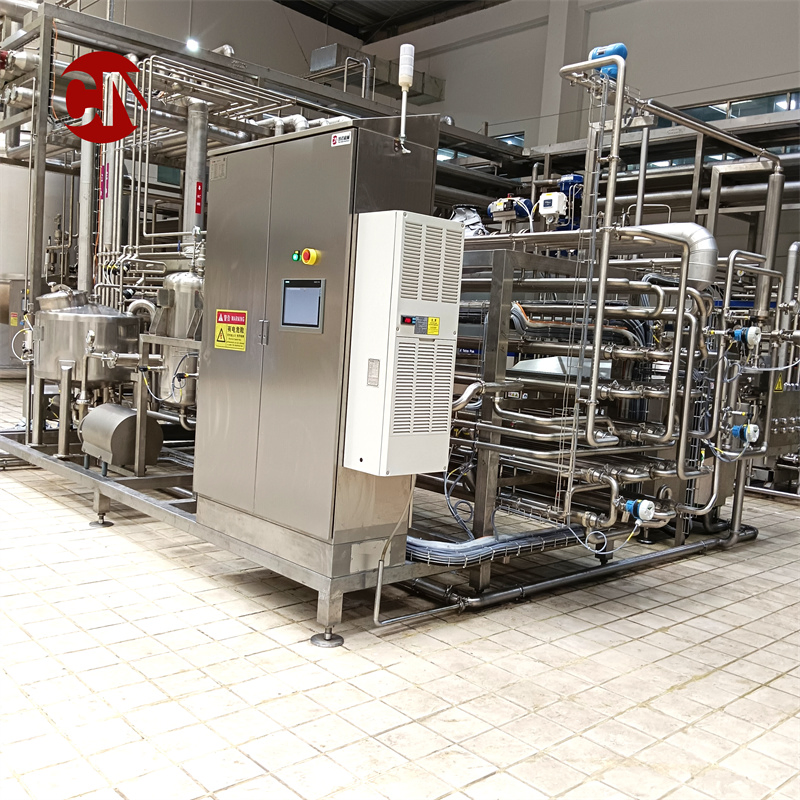

• Touch screen human-machine interface with PLC control.
• Formula management and real-time data recording.
• Integrated CIP cleaning system (operates independently from main workshop line).
• Materials fully comply with GMP standards for food factories.

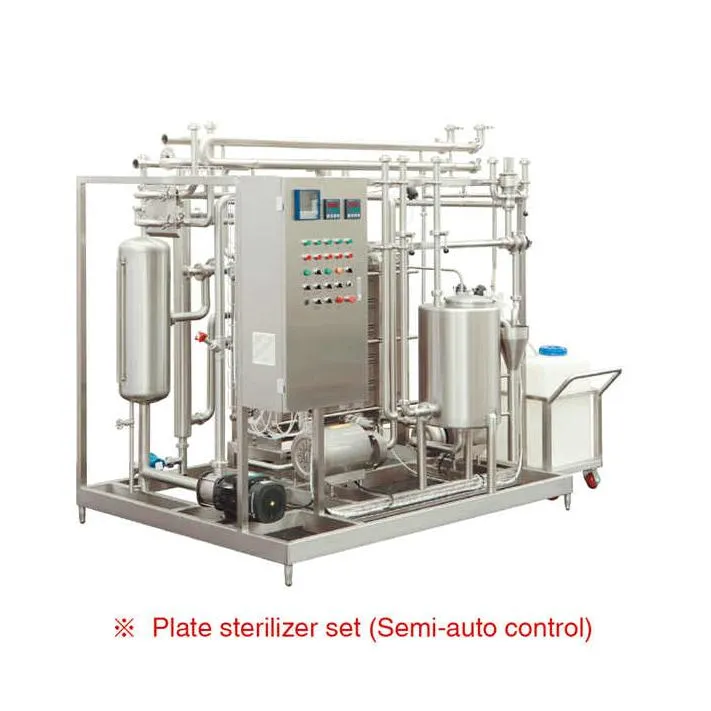

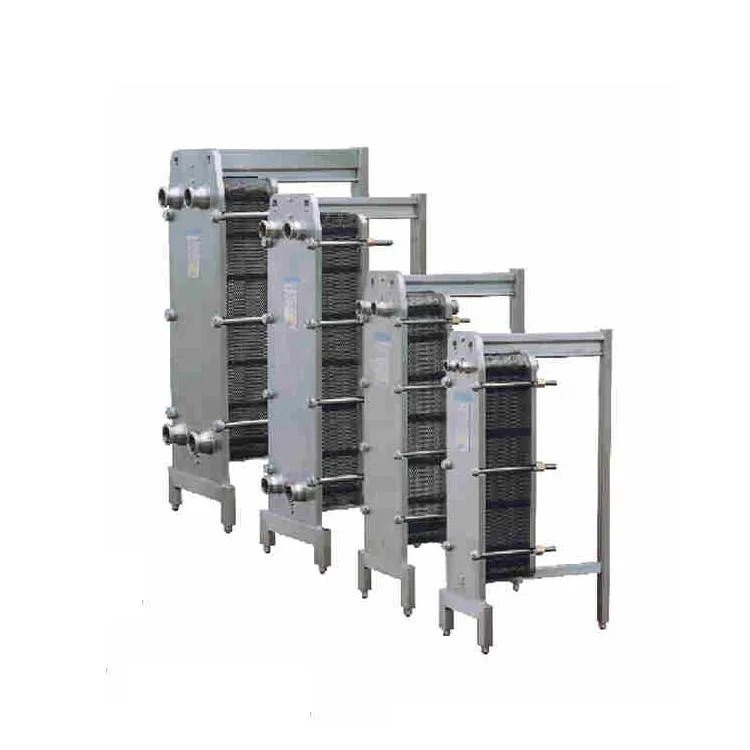

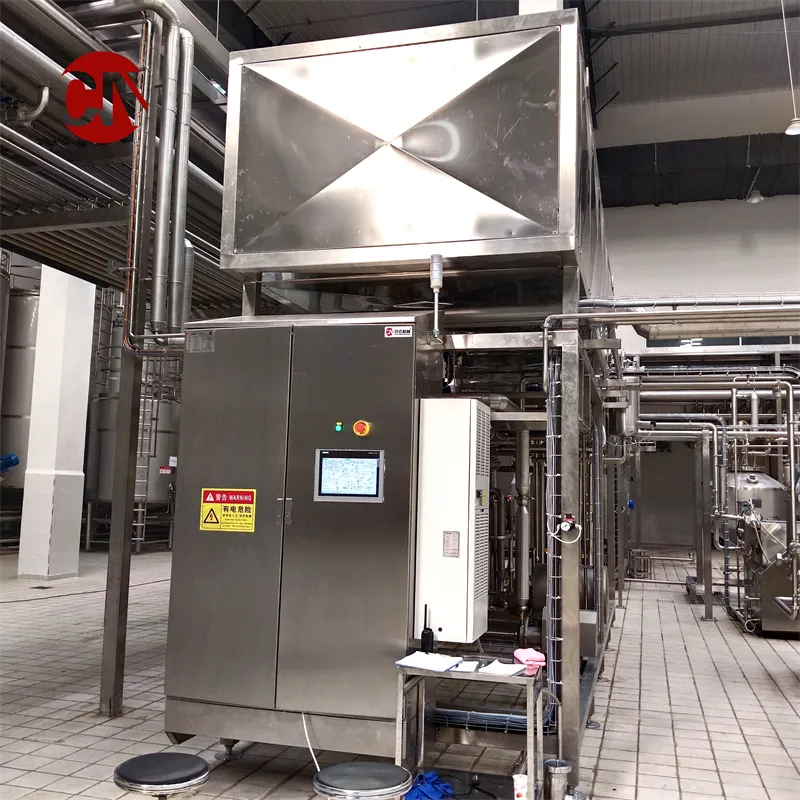

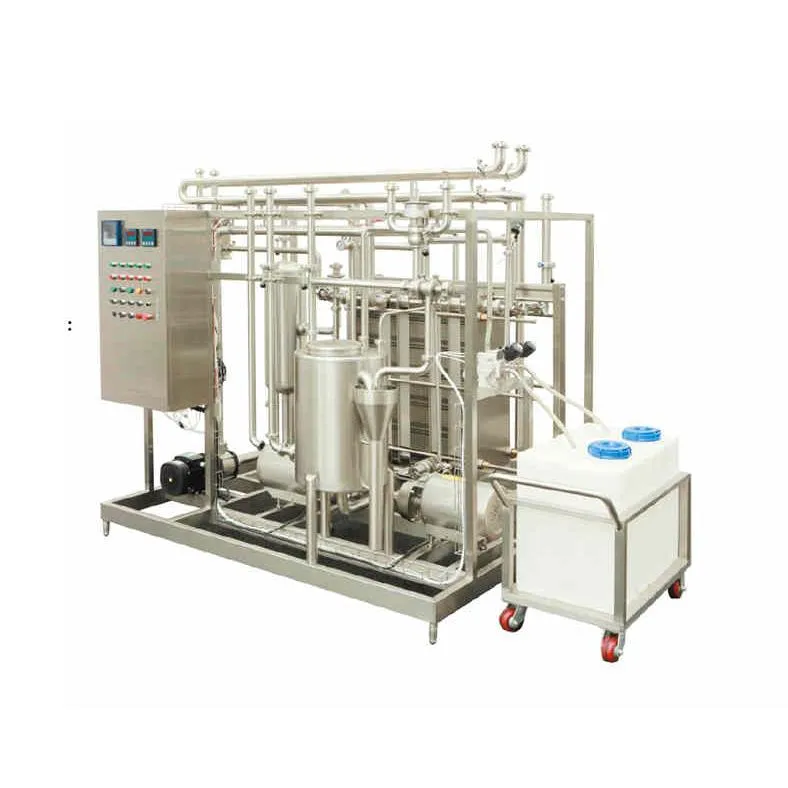

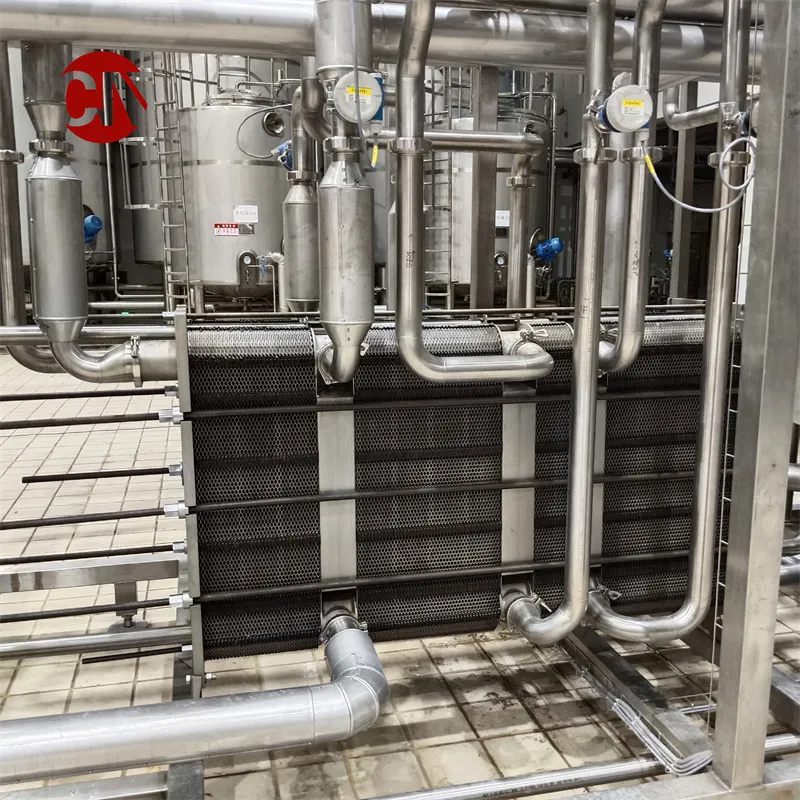

Product Details
Processing Line Equipment

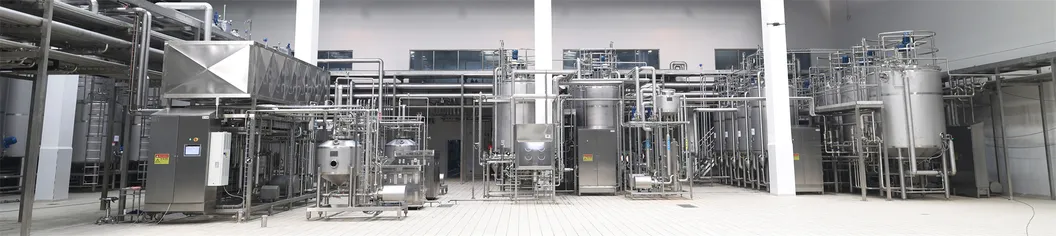

20 Ton/Hour Milk & Yogurt Production Line

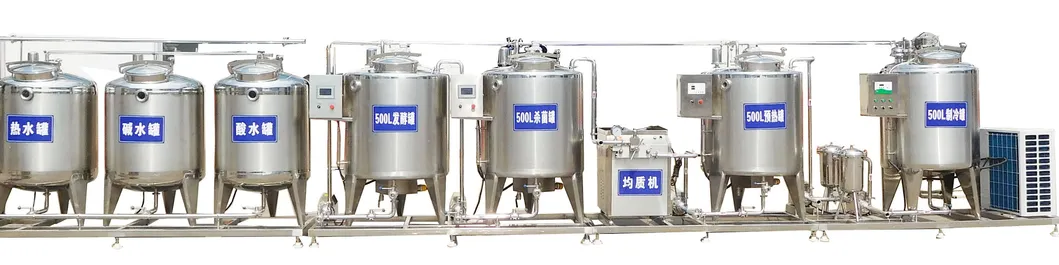

500L Milk & Yogurt Production Line

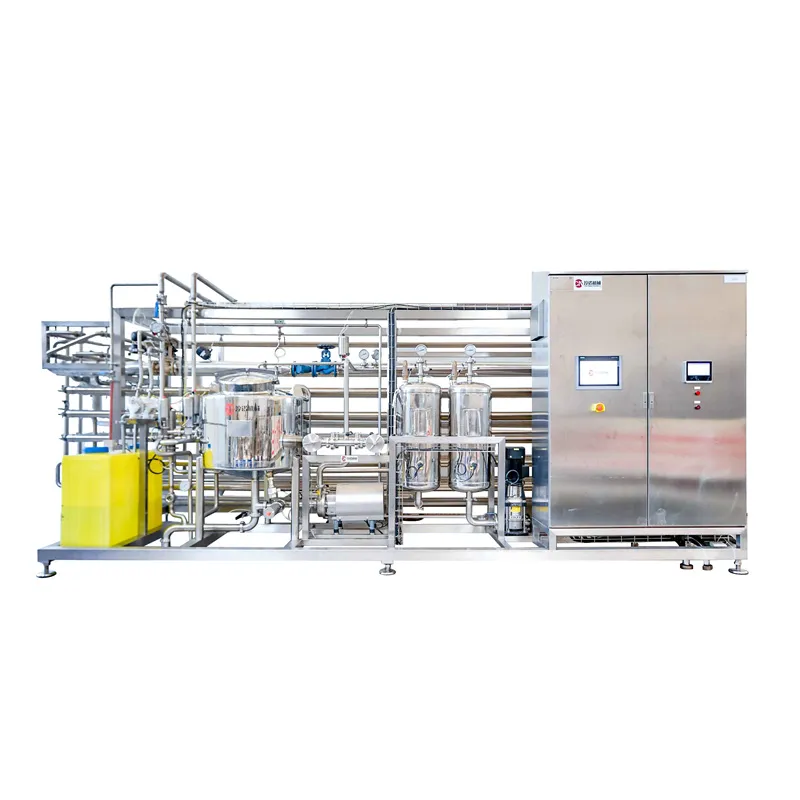

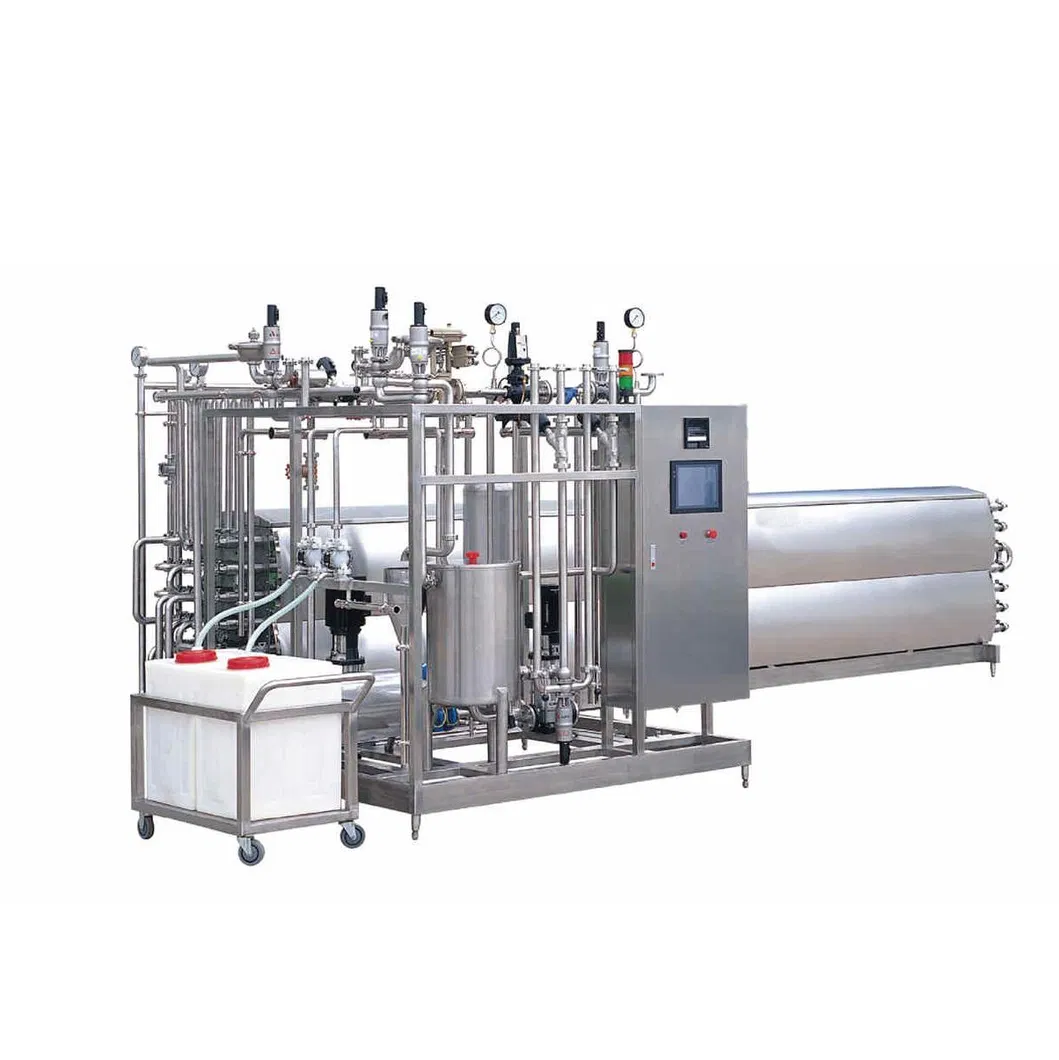

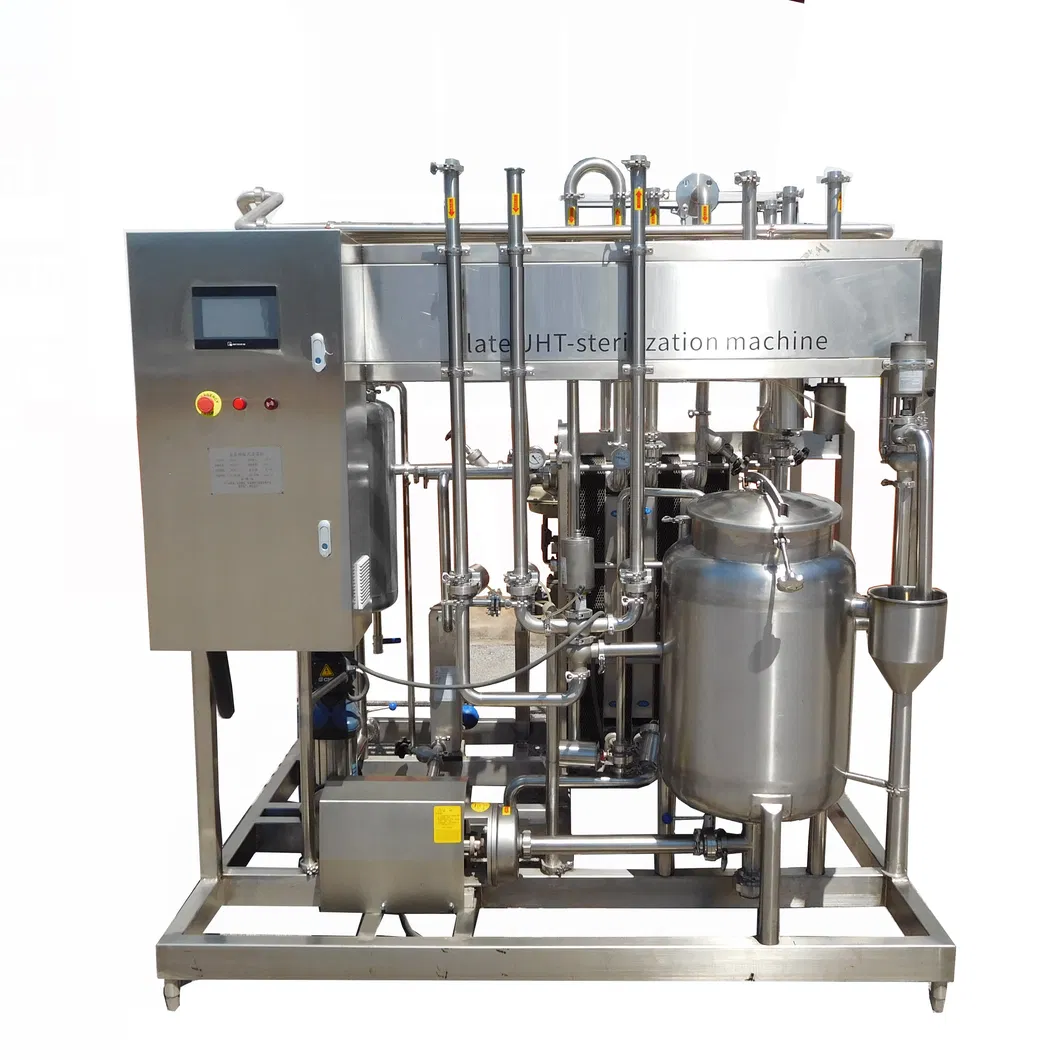

UHT Sterilization & Related Systems
Applications
Technical Support & Service
We specialize in the food, beverage, dairy, and pharmaceutical industries, providing complete fluid food turnkey projects. Our expertise covers the design and manufacturing of pasteurizers, UHT sterilizers, mixing tank systems, CIP systems, and aseptic storage tanks.

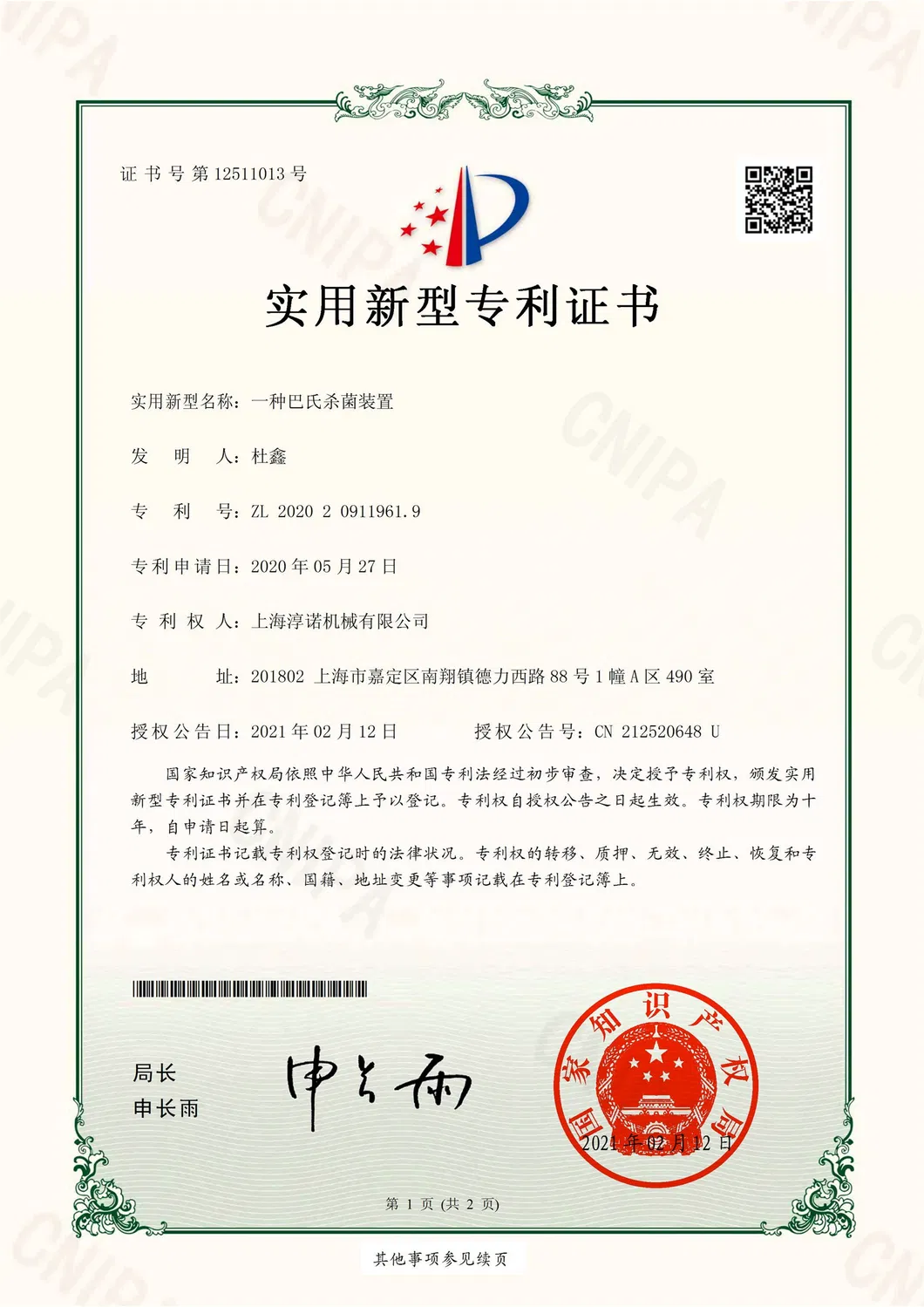

Exhibition & Certifications
Packaging & Shipping
Frequently Asked Questions
Do you have reference projects?
Yes, we have reference projects in most countries. We can provide contact information or videos of our running machines upon request and customer permission. You are also welcome to visit our facility to see machines in operation.
Do you provide overseas after-sales service?
Yes, our professional engineers are available to travel overseas to provide installation, maintenance, and after-sales support at your site.
Can the machines be customized?
Absolutely. We design machines based on your specific requirements including material type, power specifications, filling methods, and container types, backed by years of industry experience.
What is the warranty period for your equipment?
We offer a 1-year guarantee on all high-quality machines and provide lifelong technical support to ensure your production line runs smoothly.
How long does the installation process take?
Depending on the order complexity, we typically send one or two engineers to your plant. The installation and commissioning process usually takes between 10 to 25 days.
Are your machines compliant with food safety standards?
Yes, all our manufacturing materials and design processes fully comply with GMP standards for food factories, ensuring high hygiene and safety.
