Basic Information
Certification
CE, FDA, ISO13485
LCD Display
With LCD Display
Working Temperature
134 °C
Power
2.5kw / AC220V.50Hz
Transport Package
Wooden Case
Product Introduction

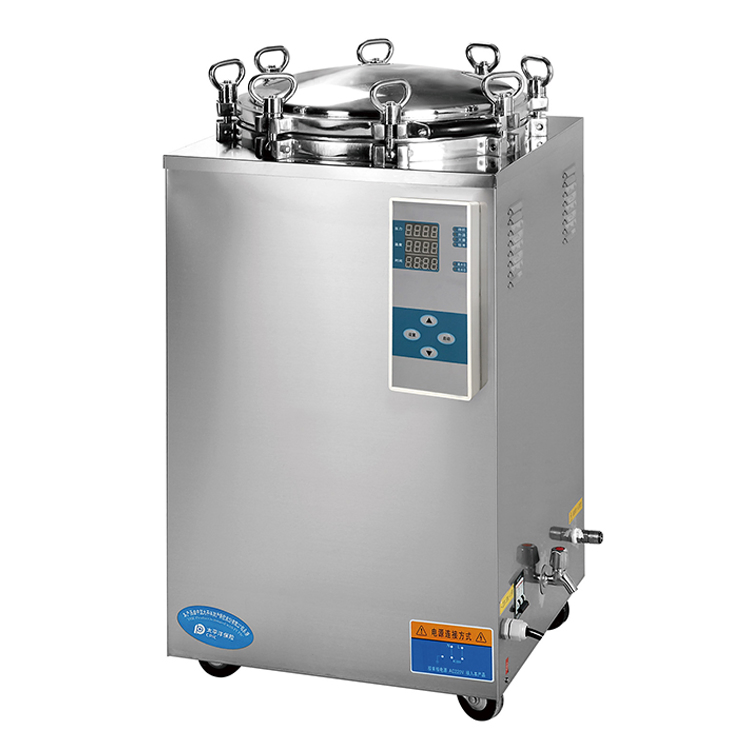

The vertical steam sterilizer is equipped with LCD screen automatic control program, built-in electric heater, safety valve, pressure and temperature display, sterilization end alarm and automatic cut off heating power supply and other devices. The container has the advantages of reliable disinfection and sterilization effect, convenient operation, safe use, power-saving, durable, and low-cost products. It is an ideal equipment for disinfection and sterilization of surgical instruments, dressings, utensils, culture media, etc.

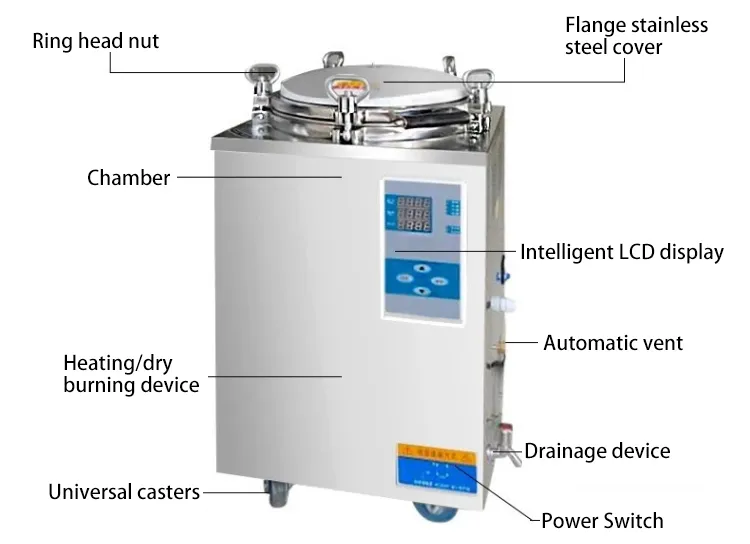

Main Features
✔ Fully stainless steel structure
✔ Indicator light indicates working state
✔ Over temperature & over pressure auto-protection
✔ Auto discharge of cool air and steam
✔ Safe protection against water shortage
✔ Automatic shut off with beep alert
✔ Easy, safe, and reliable operation
✔ Two stainless steel sterilizing baskets included
Main Parameters
| Model |
LS-35LD |
LS-50LD |
LS-75LD |
LS-100LD |
| Chamber volume |
35L |
50L |
75L |
100L |
| Working pressure |
0.22MPa |
| Working temperature |
134ºC |
| Max working pressure |
0.23Mpa |
| Timer |
0~99min or 0-99hour59min |
| Adjustment of temperature |
105~134ºC |
| Power |
2.5Kw/220V |
3Kw/220V |
4.5KW/220V |
| G.W/N.W (Kg) |
64 / 64 |
75 / 56 |
90 / 67 |
98 / 73 |

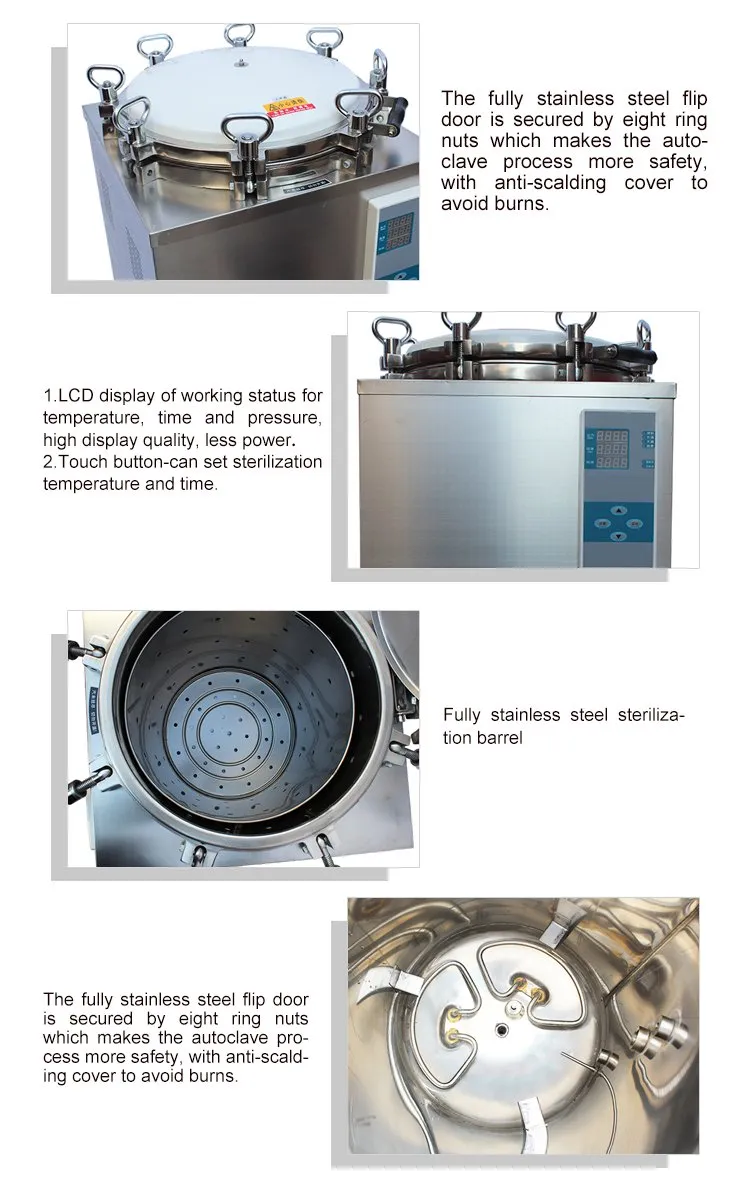

Product Details
Packaging & Shipping
Packaging
Glass parts wrapped with foam in cartons; main body in wooden cases. Neutral and customized options available.
Shipping
Available via International Express (DHL, UPS, TNT, EMS) or via your own shipping agent based on budget and timeline.
Frequently Asked Questions
What is the warranty period for this sterilizer?
We offer a 1-year warranty starting from the date of shipping. During this period, we provide replacement and maintenance services for any manufacturing or quality issues.
How do I handle technical issues with the equipment?
Please contact us with a detailed description of the problem, including pictures or short videos. Our technical team will analyze the issue and provide a solution. Replacement parts are free within the warranty period.
What are the main safety protections of the LS-LD series?
The machine features over-temperature and over-pressure auto-protection, water-lack safety protection, and an automatic shut-off system with an alarm at the end of the sterilization cycle.
Can the sterilization temperature be adjusted?
Yes, the working temperature can be adjusted within the range of 105ºC to 134ºC to suit different types of instruments and materials.
Do you provide customized services?
As a professional manufacturer, we can provide various customized services to meet specific laboratory or medical requirements.
How are replacement parts shipped?
We choose the most suitable shipping method based on the situation. Small replacement parts are typically sent via Express for fast delivery.
