Customization: Available
Customized: Customized
Certification: CE, FDA, EEC, ISO13485
Send Inquiry

Product Description

📊 Basic Information
Model:
K-J109
Display:
12.1" Color Screen (800*600dpi)
Battery:
Lithium (approx. 3 Hours)
Working Modes:
Monitoring, Surgery, Diagnosis
Parameters:
SpO2, ECG, Temp, NIBP, Resp, PR/HR
Output:
VGA for External Display
Language:
Multiple Language Support
Functions:
Alarm, Freeze, Trend Table Data
⭐ Product Description

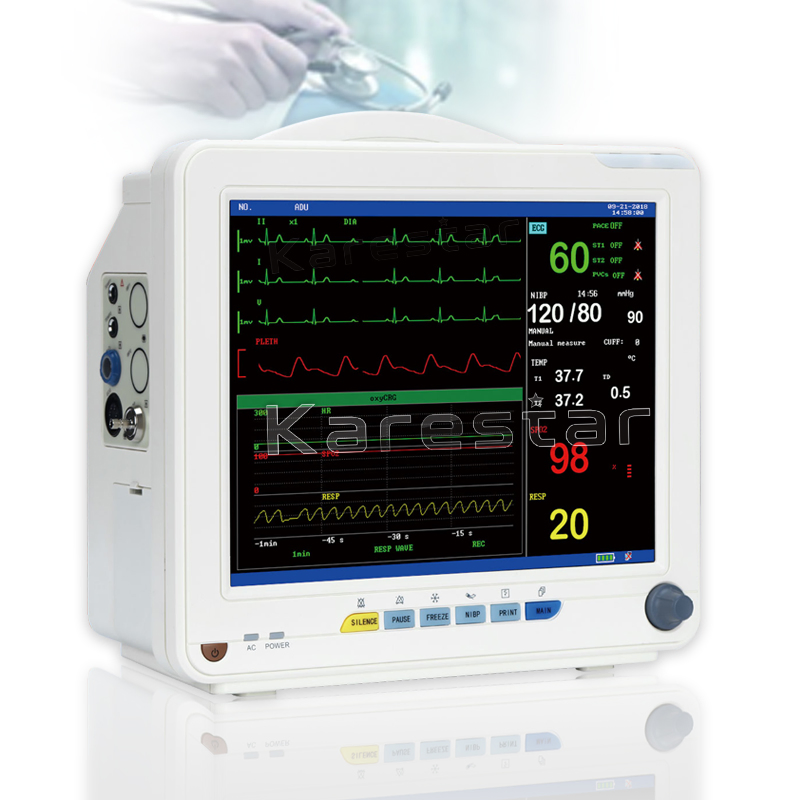

Medical Remote Central Monitoring System ICU patient vital signs monitoring device.

Vital Signs Monitoring Device

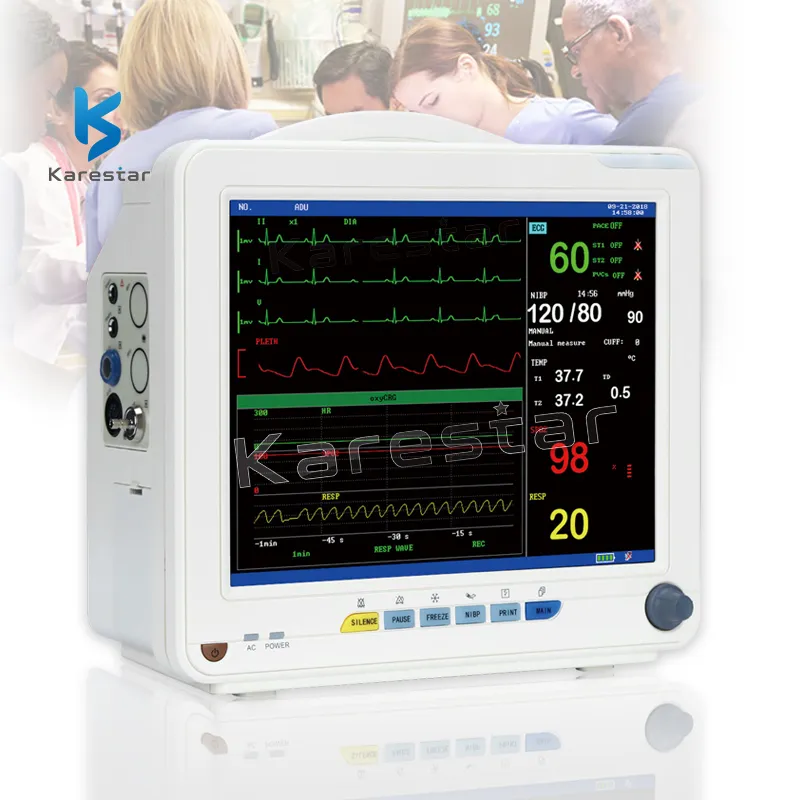

Patient Monitoring System

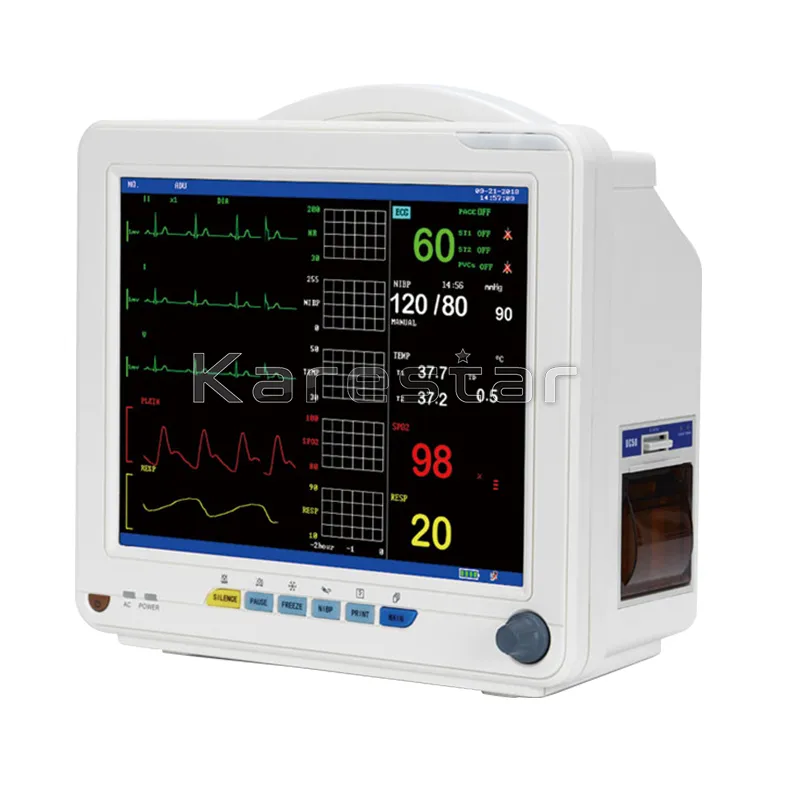

  • 12.1 inch high brightness color screen, 800*600dpi resolution.
  • Built-in high capacity battery for portable use.
  • Standard 6 parameters: SPO2, ECG, TEMP, NIBP, RESP, PR/HR.
  • Fanless design: Quiet, energy-saving, and clean for medical environments.
  • Display up to 8-channel waveform on one screen.
  • NIBP measurement mode: Manual/AUTO/Continuous, storage for 1000 groups.

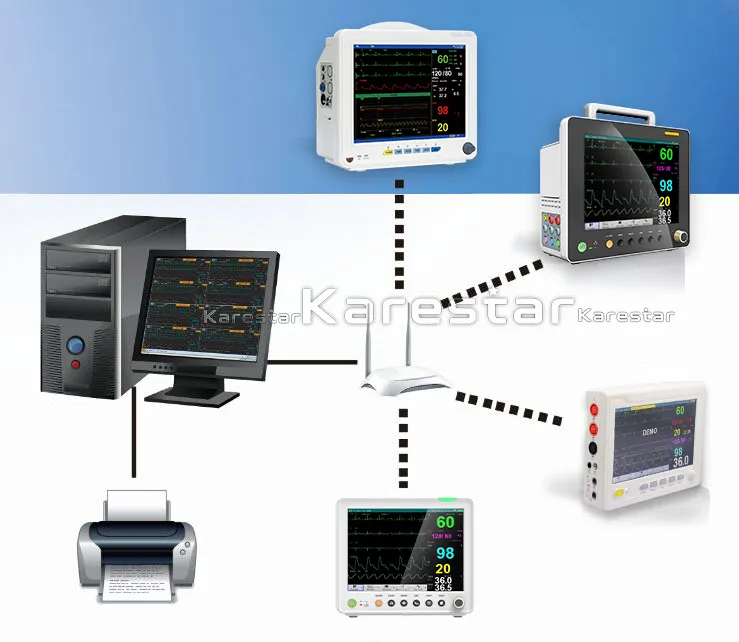

  • Central Monitoring: Supports WiFi or wired connection.
  • Drug concentration calculation and titration table functions.
🛠️ Configuration Table
Standard Configuration Qty Optional Configuration
Main machine1 PCETCO2, Dual IBP, SPO2
ECG lead wire1 PCSuntech NIBP, Anesthetic gas module, Printer
SPO2 sensor1 PCTouch screen function
BP cuff & Extension cord1 PCTrolley, Wall mount
Temperature probe1 PC12 lead ECG

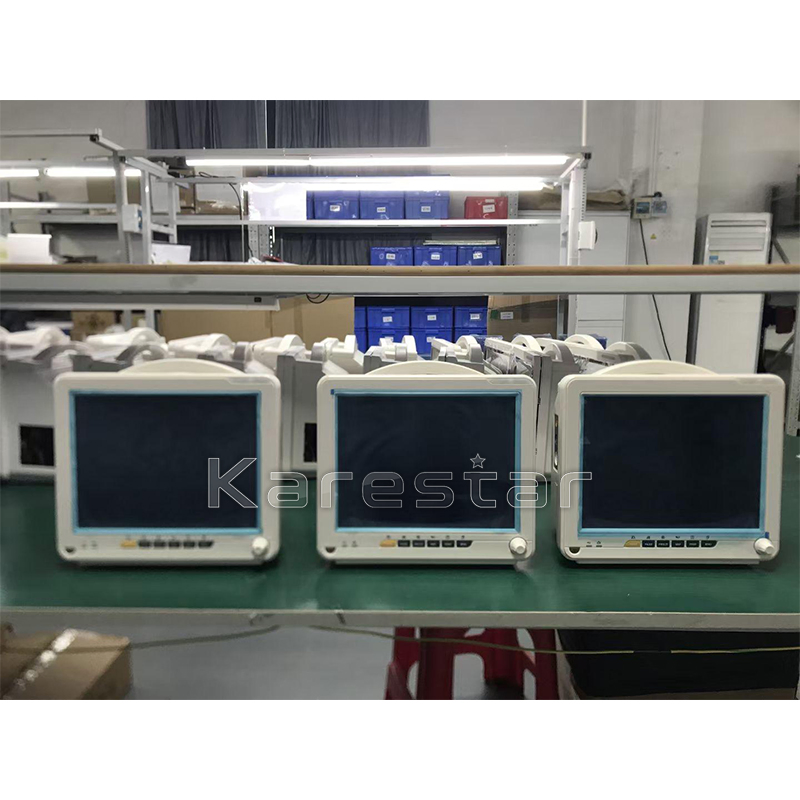

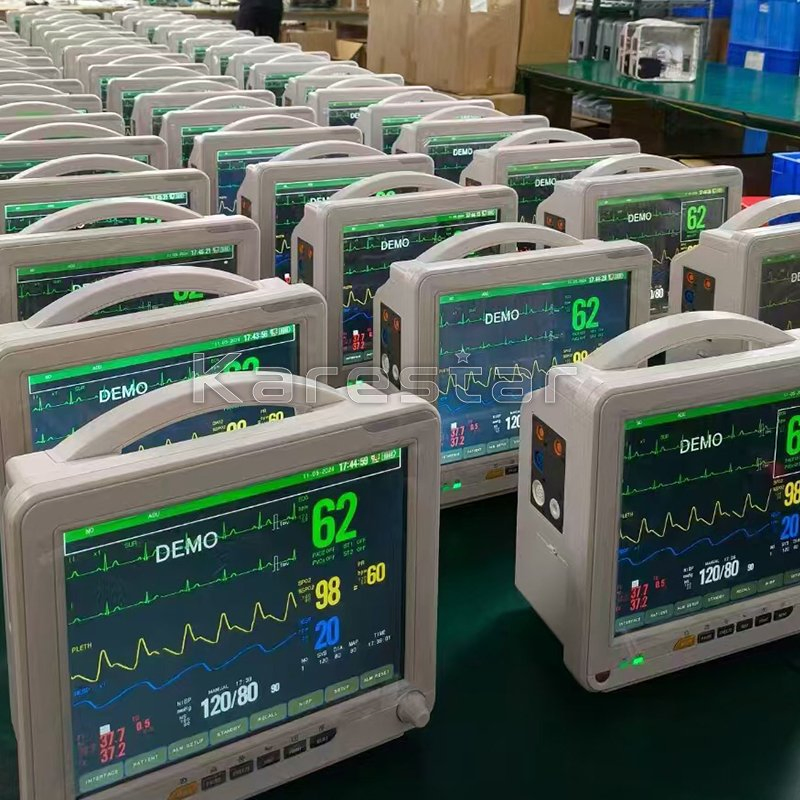

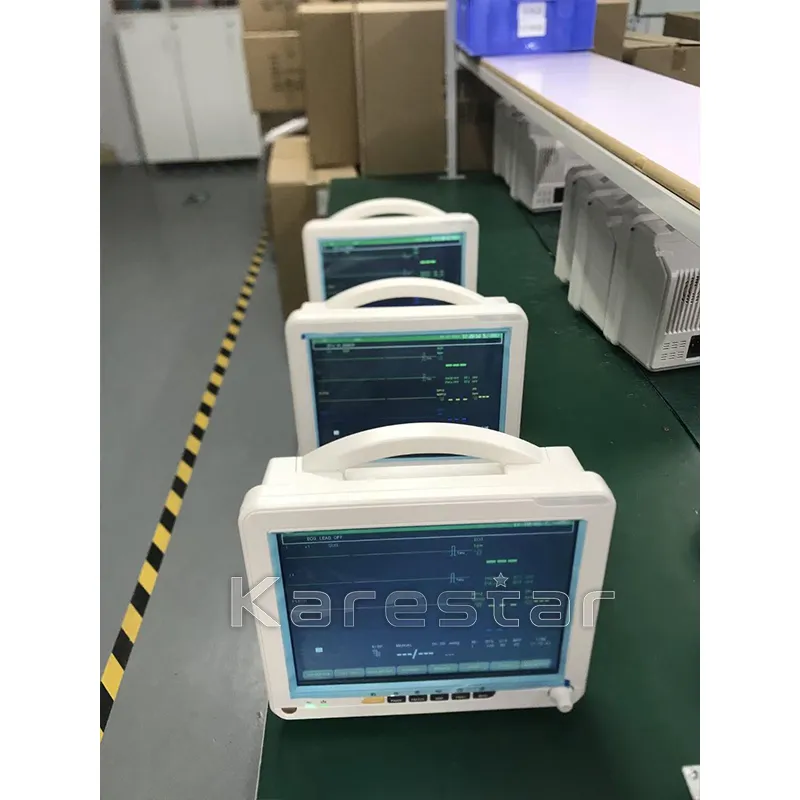

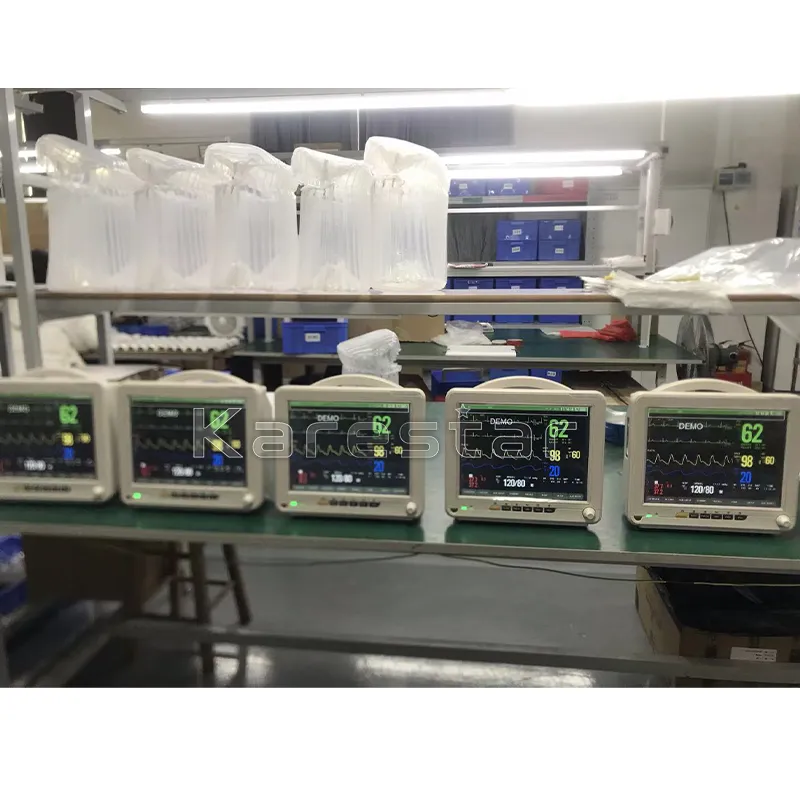

📸 Product Gallery
📋 Technical Specifications
Parameter Details
ECG 5 Leads (I, II, III, AVR, AVL, AVF, V); Heart Rate: 15-350 BPM; ST range: -2.0 ~ +2.0 mV
SPO2 Range: 0 ~ 100 %; Accuracy: ±2% (70%~100%); Pulse Rate: 20-250 BPM
NIBP Method: Oscillometry; Modes: Manual, Auto, Continuous; Adult/Pediatric/Neonatal settings
RESP Range: Adult 10-120 BrPM, Neonatal 7-150 BrPM; Accuracy: ±2 BrPM
TEMP Range: 0 ~ 50 °C; Resolution: 0.1°C; Accuracy: ±0.1°C
❓ Frequently Asked Questions
Q1: Are you a manufacturer?
A: Yes, we are a factory with over 7 years of manufacturing experience in medical devices.
Q2: What is the Minimum Order Quantity (MOQ)?
A: The MOQ is 1 set. Samples can be provided for your professional evaluation.
Q3: How long is the delivery time?
A: Usually 3-30 days after order confirmation, depending on the specific item and quantity.
Q4: Do you support OEM or Private Labeling?
A: Yes, we offer OEM services and can customize logos and labels to meet your requirements.
Q5: Are the goods tested before delivery?
A: Absolutely. We conduct 100% testing on all products before they are dispatched.
Q6: How is the warranty and after-sales service handled?
A: Products are produced under strict quality control. If any fault occurs within the warranty period, we provide new spare parts free of charge.
