Product Description

Overview - Basic Information

Model NO.:Alps PM800A

Certification:ISO13485

Group:All

Product:Vital Sign Monitor

Screen:2.8 Inch Color LCD

Warranty:1 Year

Power Supply:Built-in Battery

Specification:205*200*95 mm

Product Description

Vital Sign Monitor Features

2.8 inch color LCD to display SpO2 waveform and PR strength
3888 groups storage/review trend data with duration selectable
Audible & visual alarm

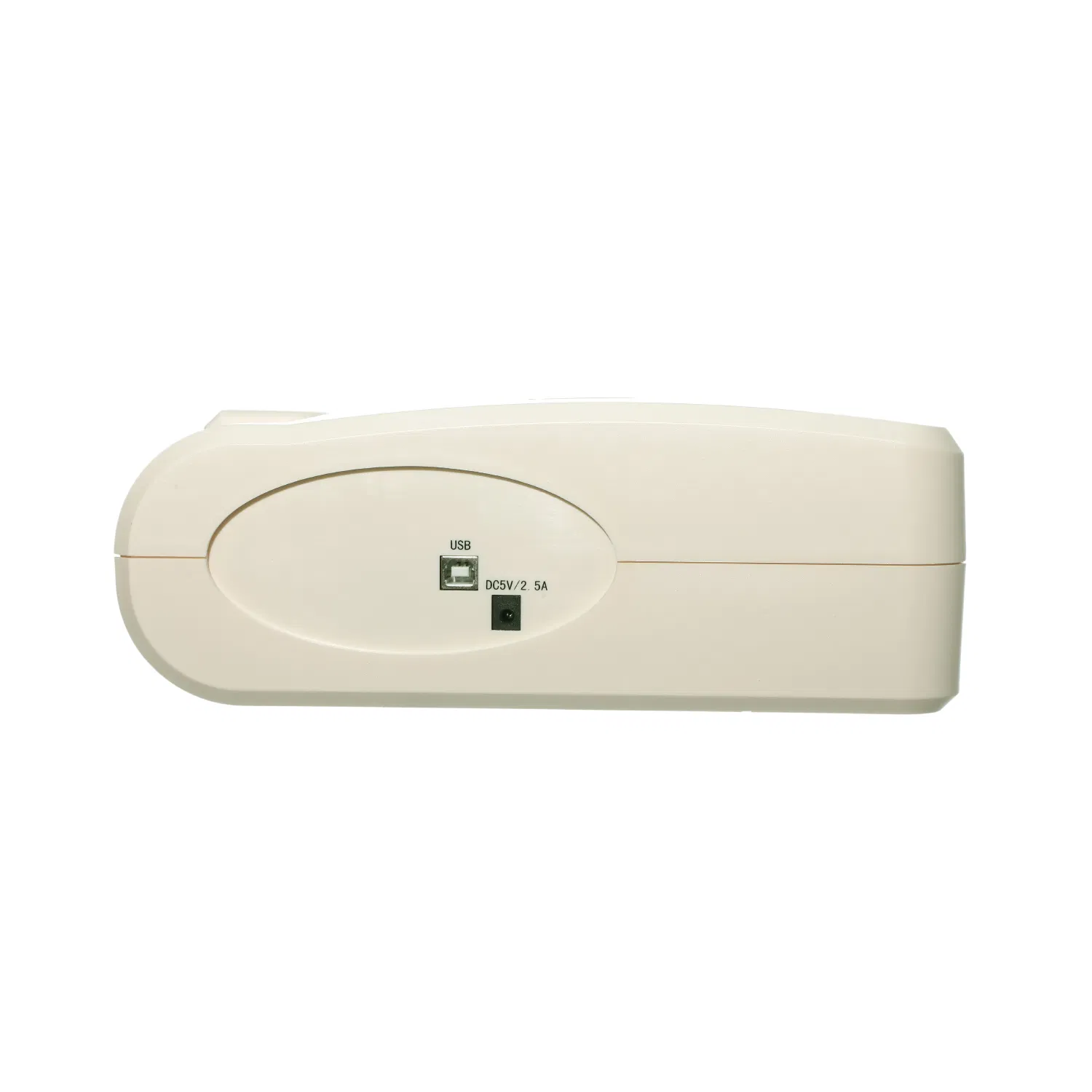

USB interface for PC connection to support tele-monitoring
Built-in rechargeable battery with Max. 5 hour operation time
Automatic power off in case no operation within the preset time
Applicable to adult, pediatric and neonate
Indicator with related prompt in case of low battery capacity

Standard Configuration: SpO2, PR, NIBP, HR, PLETH

Technical Parameters

1. General Specifications

Size: 205mm×200mm×95mm | Net Weight: 1 kg
Display: 7-segment LEDs (Parameters) & Fixed characters (Icons)

2. Power Supply

AC Input: 100-240V, 50/60Hz | Output: DC 9V, 800mA
Battery: Lithium-ion rechargeable 5AHr 7.2V
Operating Time: Up to 10 hours | Recharge Time: 12 hours

3. Environment

Working Temp: 0 ~ 45 °C | Storage Temp: -25 ~ 85°C
Working Humidity: 30 ~ 85 % (no condensation)

4. Monitoring Parameters

NIBP: Oscillometric Method (Manual/Auto/STAT). Range: Adult 30~255mmHg. Pulse Rate Range: 30~250 bpm.
SpO2: Range: 35 ~ 99% | Accuracy: ±2 % (70 ~ 99%)
Storage: Maximum Store Data of 800 groups.

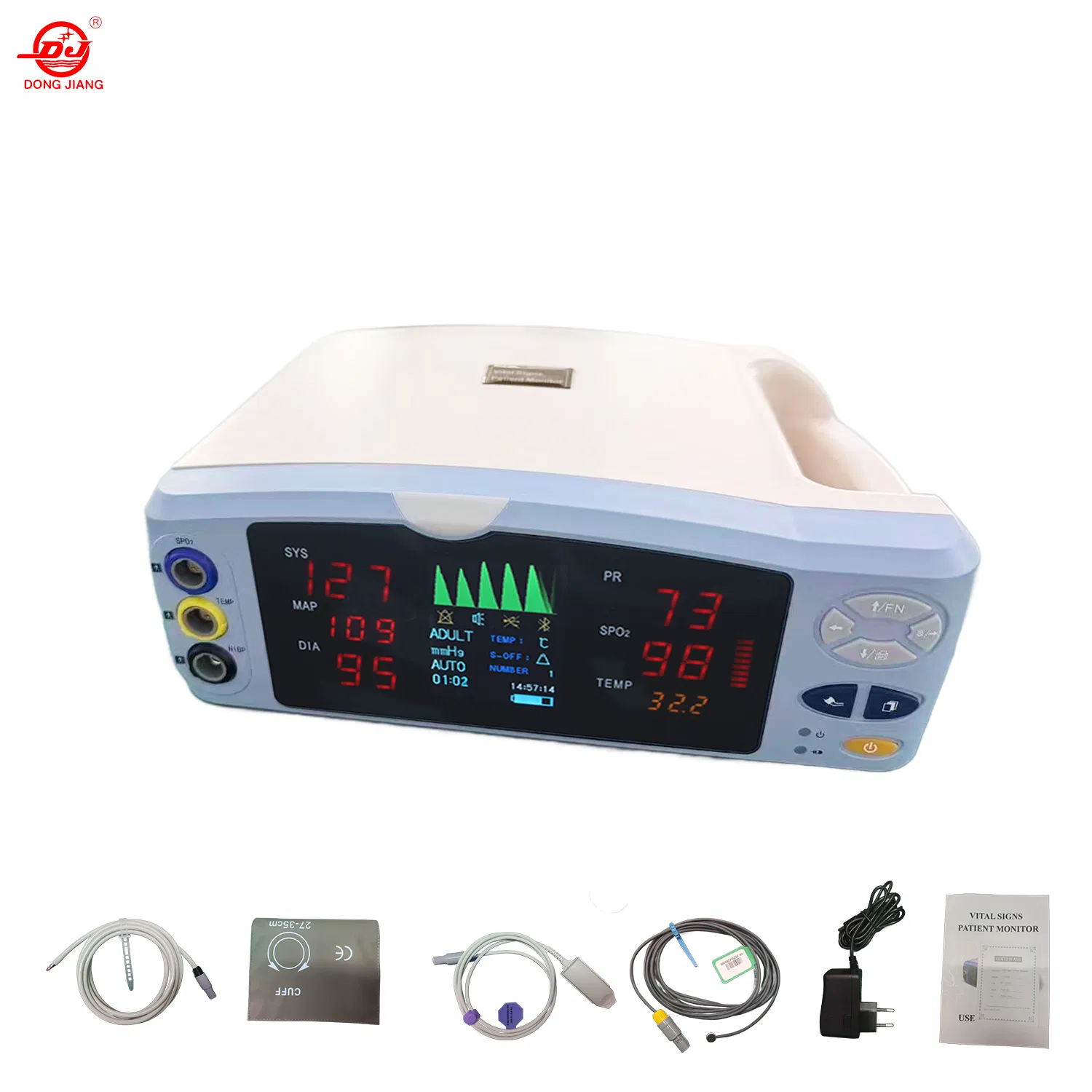

Packaging & Shipping

Standard Packing Item	Quantity
Patient monitor main unit	1 pc
Adult finger SpO2 sensor	1 pc
Adult NIBP cuff	1 pc
NIBP extension tube	1 pc
AC power adaptor	1 pc
The operator's manual	1 pc

Selectable Accessories: Child finger SpO2 sensor, Child NIBP cuff.

Product Views

Frequently Asked Questions

Q1: Which vital signs can this monitor measure?

This device measures SpO2 (Oxygen Saturation), PR (Pulse Rate), NIBP (Non-Invasive Blood Pressure), HR (Heart Rate), and PLETH waveforms.

Q2: Can this monitor be used for pediatric patients?

Yes, the device is designed with different modes suitable for adult, pediatric, and neonate patients. Optional child sensors and cuffs are available.

Q3: How portable is the Alps PM800A?

The monitor is highly portable, weighing only 1 kg with dimensions of 205*200*95 mm, and features a built-in rechargeable battery for mobile use.

Q4: How long does the battery last on a single charge?

The built-in battery provides up to 5 hours of continuous operation in standard waveform mode, or up to 10 hours depending on the NIBP measurement interval settings.

Q5: Can I transfer the stored data to a computer?

Yes, the device includes a USB interface that allows connection to a PC for tele-monitoring and data management.

Q6: Does the device have any safety alerts?

Yes, it features both audible and visual alarms to alert medical staff of any parameter fluctuations or low battery capacity.
