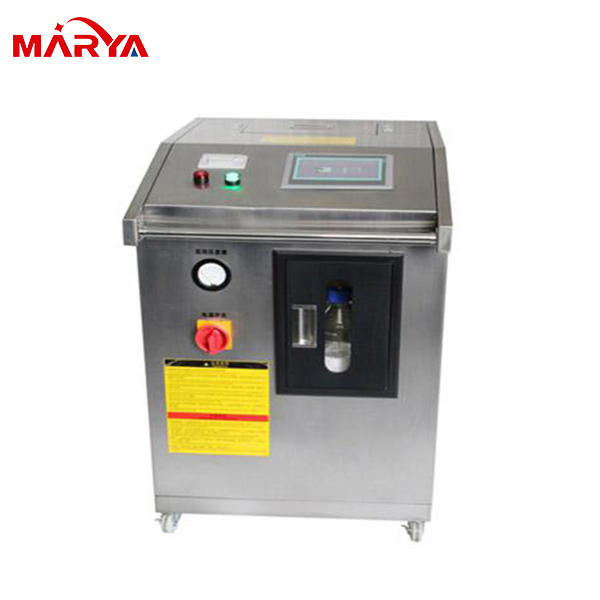

Vhp Sterilization Equipment for Pharmaceutical Cleanroom Space Sterilization and HEPA Filter

Customization: Available
Theory: H2O2 Solution
Type: H2O2 Solution

Product Description

Basic Information
Certification
CE, FDA, EEC, ISO13485
Electric Tension
380V
LCD Display
With LCD Display
Temperature Alarm
Ultra High Temperature Alarm
Material
Stainless Steel
Application
Pharmaceutical, Clean Room, Lab, Hospital
Warranty
1 Year
Vaporization Temp
Less Than 40 Degree
Sterilization Cycle
Less Than 120 Min
Production Capacity
100PCS/Month
Product Description
VHP Space Sterilization equipment for Pharmaceutical Cleanroom space sterilization

Laboratory Stainless Steel VHP Sterilizer for space sterilization integrates vaporization of hydrogen peroxide sterilization on all exposed surfaces. Using hydrogen peroxide gas rather than liquid state at room temperature provides a superior ability to kill spores through the generation of free hydroxyl radicals. These ingredients attack cell components including lipids, proteins, and DNA, replacing traditional ultraviolet disinfection methods to achieve total sterilization requirements.

Vaporized hydrogen peroxide sterilization is ideal for low-temperature sterilization. It features excellent material compatibility, decomposes easily into water and oxygen, and leaves no harmful residue. It is primarily used in aseptic clean rooms and for material transfer between clean rooms in the pharmaceutical industry.

🚀 Key Features of Space Sterilizer:
  • Reliable sterilizing effect: Bactericidal and viricidal ability reaches 6lg.
  • Environmentally safe: Decomposition products are only water vapor and oxygen, no toxic residue.
  • Human-friendly: Adopts food-grade hydrogen peroxide solution, harmless to the environment.
  • High efficiency: Rapid cycle process with very low operating costs.
  • Material Compatibility: Excellent compatibility with various cleanroom materials.
Detailed Photos
VHP Equipment 1

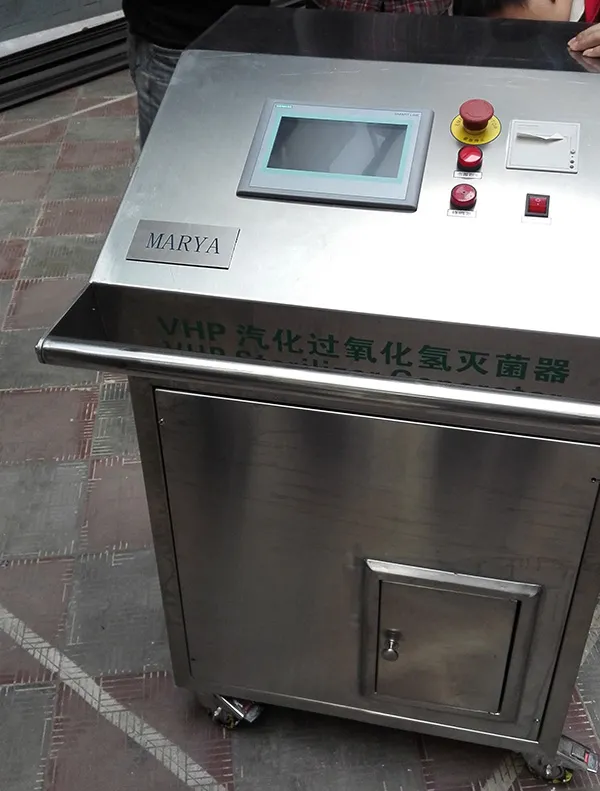

VHP Equipment 2

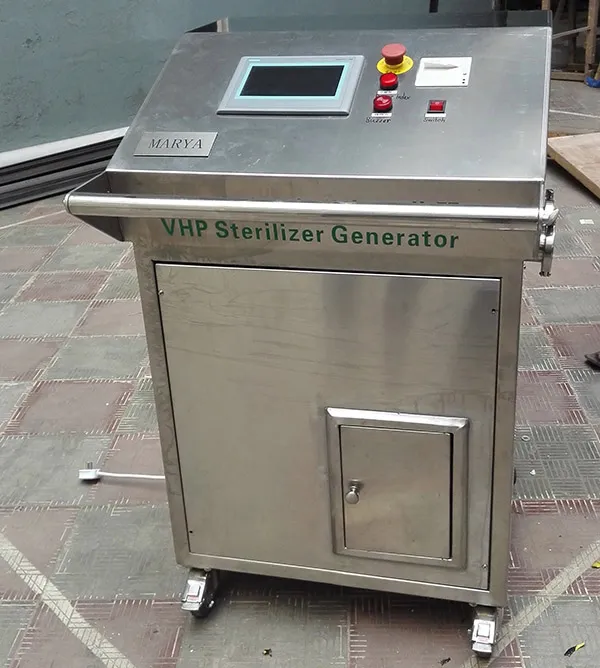

VHP Equipment 3

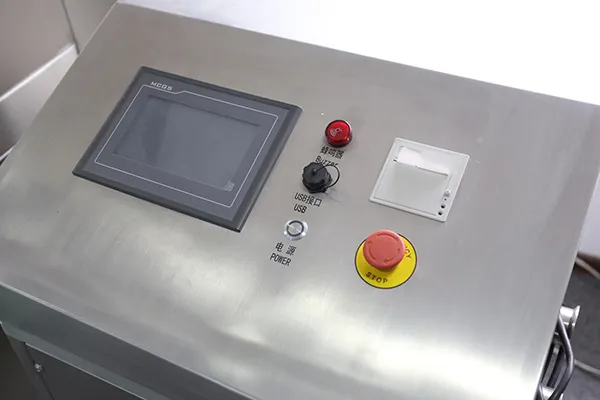

VHP Equipment 4

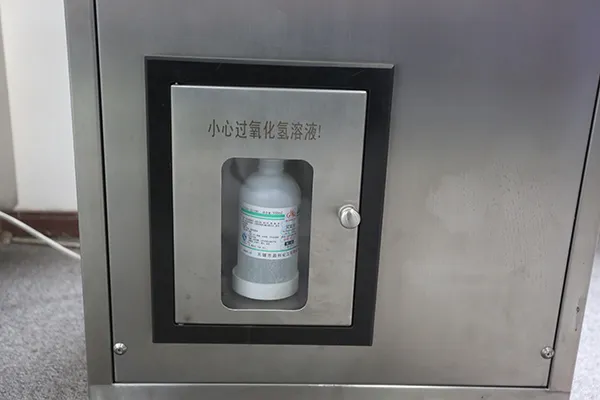

VHP Equipment 5
VHP Equipment 6

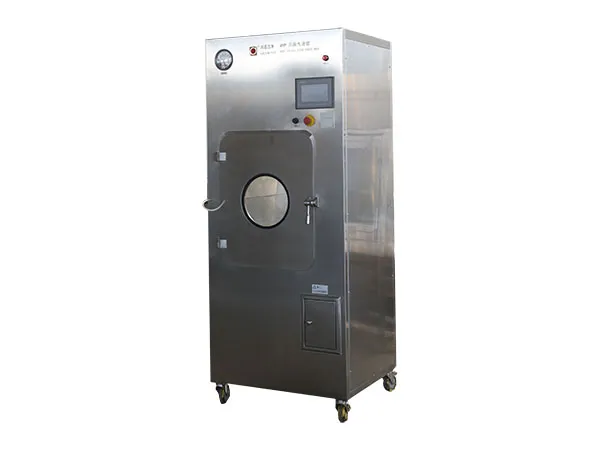

VHP System Diagram
Product Parameters
Working Method
Continuous work
Bactericide Agent
Food-grade H2O2 (≥30%)
Vaporization Temp
≤ 40 ºC
Injection Rate
0 ~ 30 g / min
Decontamination Ability
Thermophilic fatty spores 6lg
Dimensions
530x700x1300mm
Power Consumption
1.2kw
Sterilization Volume
100m³, 200m³, 300m³ (Optional)
Certifications & Quality
Certification
Packaging & Shipping

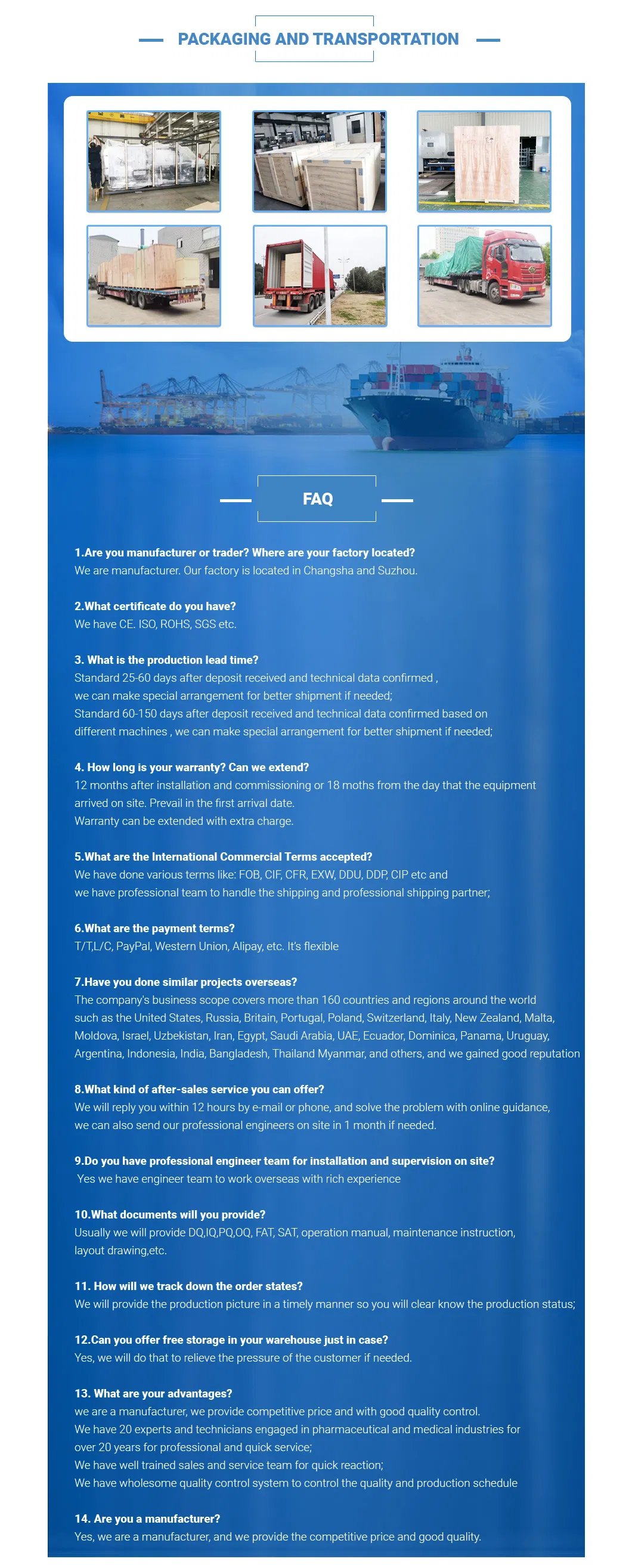

Packaging
Project Display

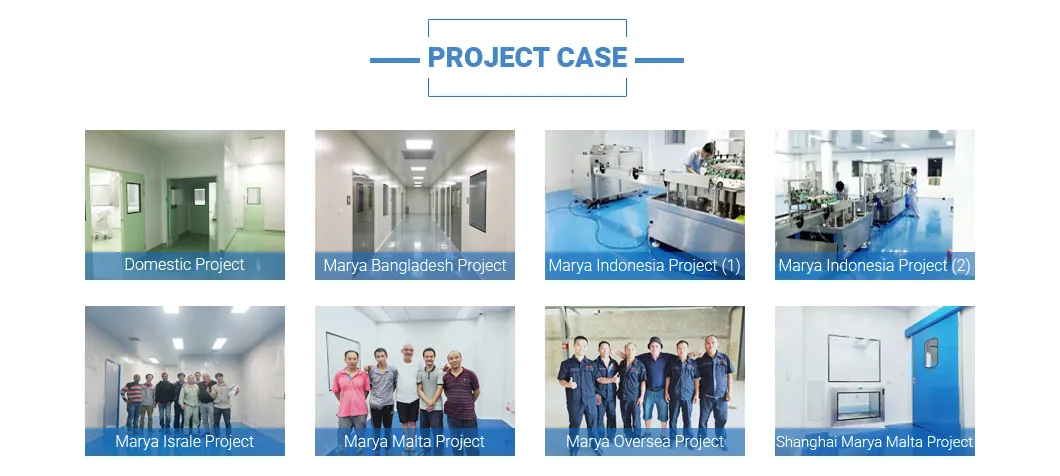

Project
Manufacturing Facility

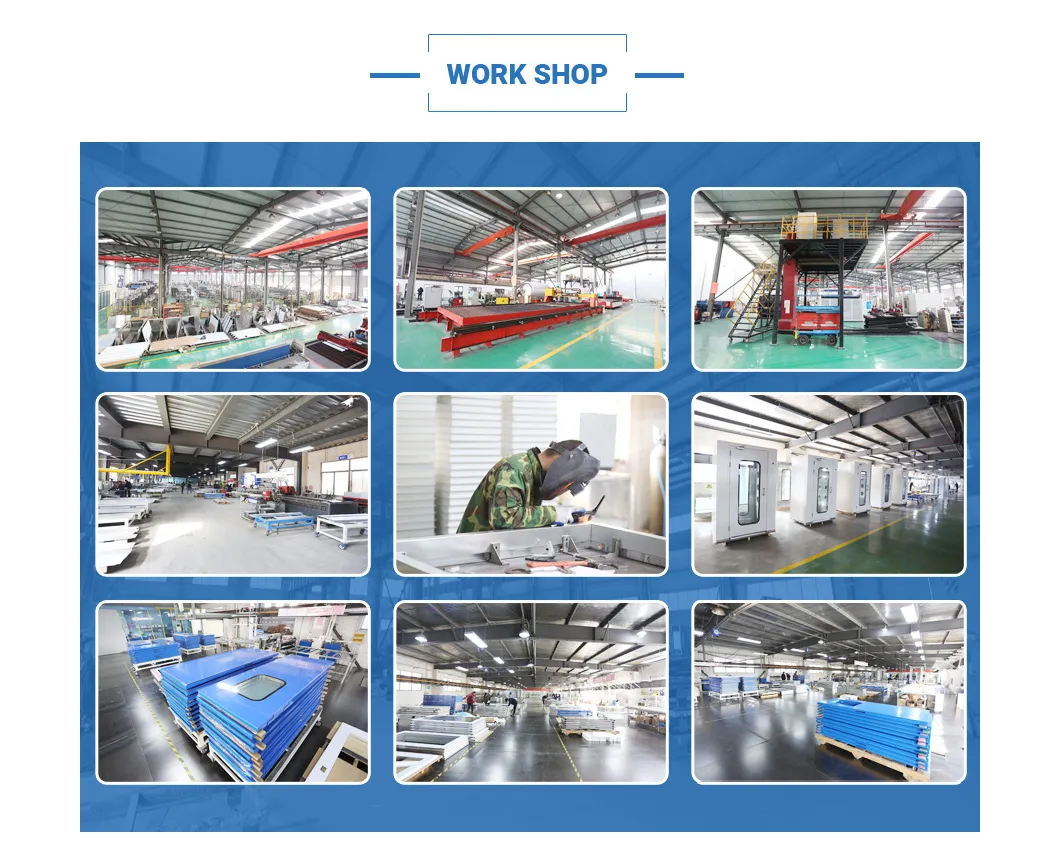

Factory
Frequently Asked Questions
What is the sterilization principle of VHP?
VHP (Vaporized Hydrogen Peroxide) works by forming free hydroxyl radicals that attack cellular components including lipids, proteins, and DNA, effectively killing microorganisms and spores at room temperature.
Is the sterilization process safe for the environment?
Yes, the process is highly eco-friendly as the hydrogen peroxide decomposes completely into water vapor and oxygen, leaving no toxic residues.
What kind of hydrogen peroxide should be used?
The equipment requires food-grade hydrogen peroxide solution with a mass concentration of 30% or higher for optimal performance.
How effective is the sterilization against spores?
The equipment is highly effective, achieving a 6-log (6lg) reduction in thermophilic fatty spores, which is a standard for professional-grade sterilization.
What are the typical applications for this equipment?
It is ideal for pharmaceutical cleanrooms, laboratory spaces, sterile pass boxes, isolators, and freeze dryers where low-temperature sterilization is required.
Does the equipment support customized sterilization volumes?
Yes, the equipment offers optional sterilization volume capacities of 100m³, 200m³, and 300m³ to meet different facility requirements.
